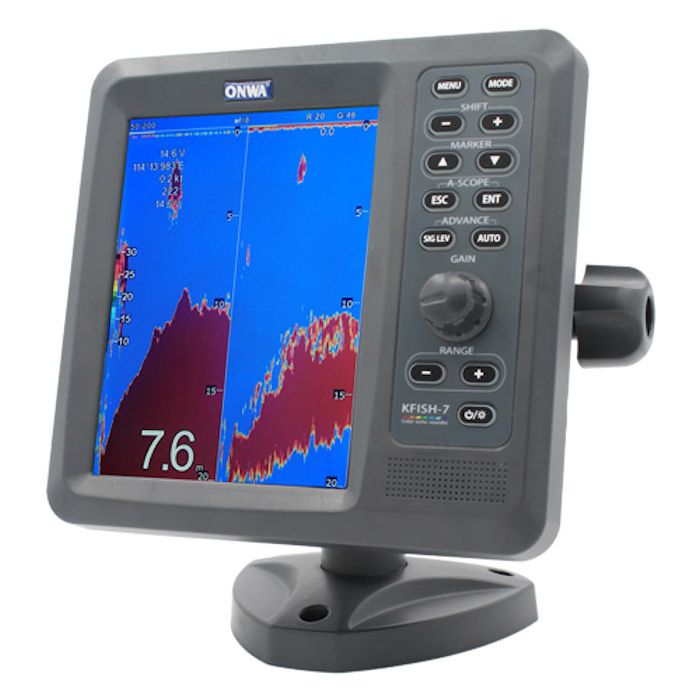

ONWA Kfish-7 Colour LCD Display Fish Finder - 7", Black
R13,399.00
SKU
KFish7BronzeTDX
Manufacturer's Website
Description
The ONWA Kfish-7 Colour LCD Display Fish Finder - 7", Black calculates and displays the size of fish or school of fish automatically. Fish or School of fishes can be represented by circle or Fish Marks. Selection of Display Modes depending. 16 Colours according to your need (50 KHz, 200KHz, Dual, to intensity 50KHz/Zoom and 200KHz/Zoom). Can distinguish different strength of echoes by colours.
Features
- Applies the most advanced digital fish finder technology
- Dual frequency 50 and 200 kHz (Alternately transmitted)
- Automatic range and gain adjustment depending on whether cruising or fishing
- Audible indication of fish under your boat
- Fish Marks function displays the size of fish or school on screen
- Seabed Hardness is indicated by colour on screen
- Fish, Bottom and temperature alarms
Specifications
| Dimensions | 213mm x 210 mm x 90 mm |
| Weight | 1.8 kg |
| Display | 7-inch Colour TFT LCD |
| Echo Colour | 16 colours (including background colour) according to echo intensity. The background colour is selectable from blue, light blue, white and black |
| Basic Range | Meters 5/10/20/40/80/150/300/600/1000, Feet 15/30/60/120/200/400/1000/2000/3000, Fathoms 3/5/10/20/40/80/150/300/600, Passi/Braza 3/5/10/30/50/100/200/350/600 |
| Range Shift | Up to 1000 meters (3000 feet, 600 fathoms, 600 passi/braza) |
| Zoom Range | Times 2,3,4 and 6 ranges |
| Bottom Lock Expansion Range | 5/10 /20 meters, 10/20/40 feet, 2/5/10 fathoms , 2/5/10 passi/braza |
| Auto Mode | Automatic adjustment of range and gain |
| Display Mode | High Frequency (200K), Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display |
| Zoom Display | Marker Zoom, Bottom Zoom and Bottom-lock Expansion |
| Display Advance Speed | Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1 |
| TX Frequency | 50 and 200 kHz (alternately transmitted) |
| Power Output | 600W RMS |
| Interference Rejecter | Rejects unwanted signals by comparing last and present echoes in strength. |
| Alarm | Fish and Bottom alarms, Temperature alarm (sensor required) |
| Input | RMC, VTG,HEV |
| Output | SDDBS, SDDBT, SDDPT |
| POWAB/Only hardness output ONWA format/SDSBH/Only hardness output ONWA format/ | |
| PHDX/Only hardness output HONDEX format/ PKODS/Only hardness output KODEN format/ | |
| Ambient Temperature | 0 C to +50 C |
| Relative Humidity | 85% at 40 C |
| Vibration | +- 1mm +-10%, 2(5) to 13.2 Hz, Maximum Acceleration 7m/s2, 13.2 to 100 Hz |
| Water Proofing | Display unit (Front Panel): IPX7 |
| Free Shipping | No |
|---|
