Pard Leopard 480 Thermal Imaging Monocular

R34,339.00
SKU
LE4-25

480 x 360 Max Sensor Resolution
1200m Detection Range
2x Magnification
-/< 20mK NETD

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

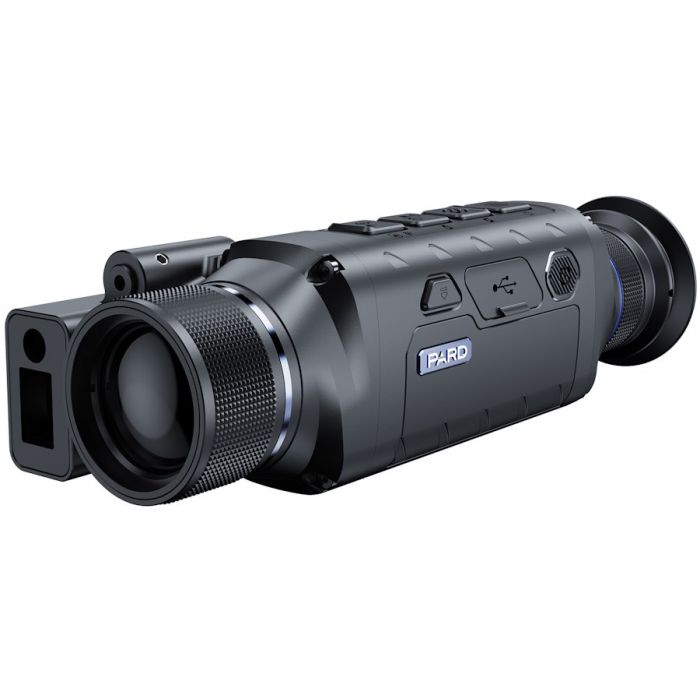

Introducing the Pard Leopard 480 2x Thermal Imaging Monocular - 25mm Lens. A compact, state-of-the-art device designed for outdoor enthusiasts and professionals seeking advanced thermal imaging capabilities. Equipped with a 480 x 360 resolution uncooled VOx (vanadium oxide) sensor, this monocular boasts a sensitivity of less than 20mK, enabling users to detect subtle temperature differences in various environments. With an impressive detection range of up to 1200 meters and a 25mm objective lens, this unit provides clear and detailed imagery, making it well-suited for applications such as hunting, wildlife observation, and surveillance.

The device features a user-friendly AMOLED display with a resolution of 1920 x 1080 pixels, delivering sharp and vibrant visuals in real-time. Users can select from six different image modes and three scene modes to optimize performance based on environmental conditions, such as cities, forests, or rainy weather. For close-ups, the 2x optical magnification can be paired with a digital zoom, allowing for enhanced observation of distant objects without losing clarity. The thermal monocular also integrates useful functionalities, including Picture-in-Picture (PIP) for focused viewing, a gyroscope for stabilizing images, and loop recording capabilities for seamless video capture.

Durability is a key feature of the Leopard 480, with an IP67 rating ensuring resistance to dust and immersion in water, making it reliable even in harsh weather conditions. The unit operates effectively in temperatures ranging from -30C to +55C (-22F to +131F). Powered by a removable and rechargeable 18650 lithium-ion battery, the device supports up to six hours of continuous use, while USB Type-C connectivity facilitates charging and data transfer. Compact and lightweight at just 360g, the Pard Leopard 480 combines portability with cutting-edge technology, making it an invaluable tool for any outdoor activity.



Features

  • WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY
  • 1920 x 1080 AMOLED Display
  • -/< 6h max battery life
  • 480 x 360 Resolution
  • 25mm Lens
  • NETD -/< 20mK Sensitivity
  • IP67 Rating
  • Super Tiny and Compact Design
  • 6 Image Modes
  • 3 Scene Modes
  • Removable & Rechargeable 18650 Li-ion Battery
  • Stand By Mode



Specifications

Sensor
Type Uncooled VOx (vanadium oxide)
Resolution (Pixel) 480 x 360
Pixel Size (Um) 12 x 12
Netd (Mk) -/< 20 mK (0.02C)
Frame Rate (Hz) 50
Detection Distance (M) 1200
Optics
Objective Lens (Mm) 25
Optical Magnification (X) 2
Digital Zoom (X) 2/4/6/8
Field Of View (Horizontal) 13.1
Field Of View (Vertical) 9.9
Field Of View (Diagonal) 16.4
Eye Relief (Mm) 20
Diopter Adjustment (D) -5 - 5
Display
Type AMOLED
Resolution (Pixel) 1920 x 1080
Scene Mode City, Rain, Forest
Image Mode WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY
Photo / Video
Photo Resolution (Pixel) 1440 x 1080
Photo Format .JPG
Video Resolution (Pixel) 1440 x 1080
Video Format .mp4
Storage (Gb) Micro SD card (Max. 128GB)
Image Engine Pard IREA
Main Function
Pip Yes
Gyroscope Yes
Loop Recording Yes
Hot Track Yes
E-Compass Yes
Shutter Mechanical shutter
Microphone Yes
Firmware Upgrade Yes
Connections
USB Type-C Yes
HDMI Output Yes
Wi-Fi Yes
Supported Apps PardVision2
Power Supply
Battery Type Lithium-ion 18650x1
Output Voltage (V) 3.7
Operating Time (H, Max) -/< 6
External Power Supply (V) USB Type-C
Environmental Characteristic
Degree Of Protection IP67
Operating Temp (C/F) -30 - +55 / -22 - +131
Material
Housing Aluminium Alloy+Composite
Eyepiece All-glass multi-coated lens
Measurement
Product Dimension/With LRF (L X W X H, Mm) 169 x 58 x 48
N.W/Pcs (With Lrf & Battery, G) 360
More Information
Free Shipping No
