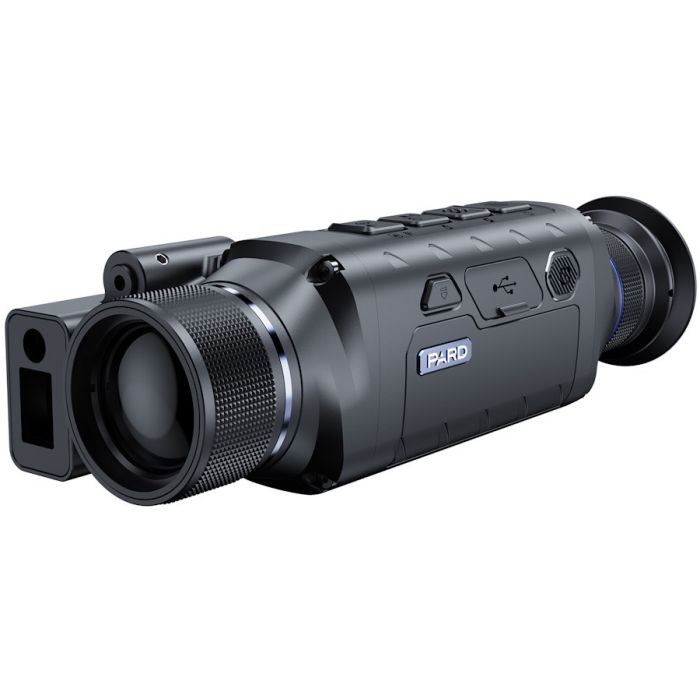

Pard Leopard 480 Laser Rangefinder Thermal Imaging Monocular
R41,009.00
SKU
LE4-35LRF
480 x 360 Max Sensor Resolution
1800m Detection Range
2/2.8x Magnification
-/< 20mk NETD
Description
Introducing the Pard Leopard 480 Laser Rangefinder Thermal Imaging Monocular. An advanced optical device designed for precision in detecting and analysing thermal signatures, making it an excellent choice for outdoor enthusiasts, hunters, and wildlife observers. Featuring a 35mm lens with a resolution of 480 x 360, this monocular delivers clear and detailed images, supported by a NETD sensitivity of less than 20 mK for enhanced temperature differentiation. With a detection range of up to 1000 meters for laser rangefinding, it ensures you can accurately identify and evaluate your target from a significant distance.
Equipped with a 50 Hz frame rate, the Pard Leopard 480 provides smooth and continuous imaging, which is essential when tracking moving objects. The digital zoom capability of 2/4/6/8 allows users to get a closer view of distant subjects, complemented by a field of view that spans 9.4 horizontally and 7.1 vertically. Additionally, the device supports various scene modes (City, Rain, Forest) and image modes (including WT-HOT and BK-HOT), enhancing versatility in different environmental conditions.
Durability is a hallmark of the Pard Leopard 480, as it boasts an IP67 rating, ensuring it can withstand harsh weather conditions. With an operating temperature ranging from -30 to +55C (-22 to +131F), this thermal monocular is built for extreme outdoor adventures. Its practical features include loop recording, a mechanical shutter, and compatible connectivity options such as USB Type-C and HDMI output. With a maximum operating time of 6 hours on a single lithium-ion battery, and support for micro SD cards up to 128GB, the Pard Leopard 480 is not only efficient but also reliable for extended use in the field.
Features
- WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY
- 1920 x 1080 AMOLED Display
- -/< 6h of max battery life
- 480 x 360 resolution
- 35mm lens
- 1000m LRF detection range
- NETD -/< 20mk sensitivity
Specifications
| Sensor | |
| Type | Uncooled VOx (vanadium oxide) |
| Resolution (Pixel) | 480 x 360 |
| Pixel Size (Um) | 12 x 12 |
| Netd (Mk) | -/< 20 mK (0.02C) |
| Frame Rate (Hz) | 50 |
| Detection Distance (M) | 1800 |
| Optics | |
| Objective Lens (Mm) | 35 |
| Optical Magnification (X) | 2/2.8 |
| Digital Zoom (X) | 2/4/6/8 |
| Field Of View (Horizontal) | 9.4 |
| Field Of View (Vertical) | 7.1 |
| Field Of View (Diagonal) | 11.7 |
| Eye Relief (Mm) | 20 |
| Diopter Adjustment (D) | -5 - 5 |
| Display | |
| Type | AMOLED |
| Resolution (Pixel) | 1920 x 1080 |
| Scene Mode | City, Rain, Forest |
| Image Mode | WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY |
| Photo / Video | |
| Photo Resolution (Pixel) | 1440 x 1080 |
| Photo Format | .JPG |
| Video Resolution (Pixel) | 1440 x 1080 |
| Video Format | .mp4 |
| Storage (Gb) | Micro SD card (Max. 128GB) |
| Image Engine | Pard IREA |
| Main Function | |
| LRF Detection Range(M/Yd) | 1000/1200 |
| Pip | Yes |
| Gyroscope | Yes |
| Loop Recording | Yes |
| Hot Track | Yes |
| E-Compass | Yes |
| Shutter | Mechanical shutter |
| Microphone | Yes |
| Firmware Upgrade | Yes |
| Connections | |
| USB Type-C | Yes |
| HDMI Output | Yes |
| Wi-Fi | Yes |
| Supported Apps | PardVision2 |
| Power Supply | |
| Battery Type | Lithium-ion 18650x1 |
| Output Voltage (V) | 3.7 |
| Operating Time (H, Max) | -/< 6 |
| External Power Supply (V) | USB Type-C |
| Environmental Characteristic | |
| Degree Of Protection | IP67 |
| Operating Temp (C/F) | -30 - +55 / -22 - +131 |
| Material | |
| Housing | Aluminium Alloy+Composite |
| Eyepiece | All-glass multi-coated lens |
| Measurement | |
| Product Dimension/With LRF (L X W X H, Mm) | 169 x 58 x 48 |
| N.W/Pcs (With LRF & Battery, G) | 360 |
| Free Shipping | No |
|---|
