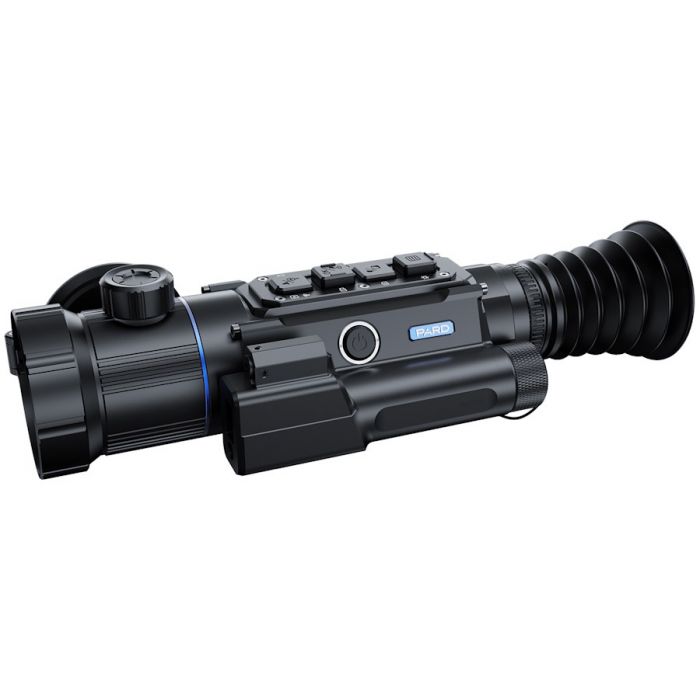

Pard Ocelot 480 Laser Rangefinder Thermal Imaging Scope

R55,099.00
SKU
OC4-50LRF

480 x 360 Sensor Resolution
2600m Human Detection Range
3.3x Magnification
-/< 20mK NETD

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

Introducing the Pard Ocelot 480 Laser Rangefinder Thermal Imaging Scope. A premium thermal imaging scope engineered for precision and high performance, ideal for both hunting and tactical applications. Equipped with a powerful 50mm lens, this scope offers an impressive optical magnification of 3.3x, providing enhanced target acquisition capabilities. Its thermal resolution of 480 x 360 pixels paired with a NETD sensitivity of < 20 mK enables users to detect even the smallest temperature differences, a crucial feature for identifying potential targets against various environmental backgrounds. The integrated laser rangefinder (LRF) boasts a detection range of up to 1000 meters, making it an invaluable asset for long-range assessments.

The Ocelot 480 prides itself on a user-friendly interface displayed on a high-quality 800 x 800 IPS round circular display, ensuring clear visibility and ease of use in various lighting conditions. Users can choose from six image modes and three scene modes to adapt to their environment, and the Picture-in-Picture (PIP) feature allows for close-up views of specific targets without losing context. Additionally, the inclusion of recoil-activated recording captures critical moments during use, while the built-in ballistics calculator aids in making accurate adjustments on-the-fly. With a range of six reticle styles available in four colours (Red, White, Yellow, Green), users can customise their display for optimal performance tailored to individual preferences.

Constructed from lightweight, durable aluminium alloy, the Pard Ocelot 480 is built to withstand harsh conditions with an IP67 rating, ensuring resistance to water and dust ingress. It operates efficiently in a wide temperature range from -30C to +55C, accommodating users in diverse climates. Powered by a single 21700 lithium-ion battery, which offers an operational time of up to 5 hours, the scope also supports external power supply via USB Type-C, extending its usability. Advanced features such as Wi-Fi connectivity, support for the PardVision2 app, and built-in capabilities like a gyroscope and e-compass position the Ocelot 480 as a leading choice for those seeking high-performance thermal imaging technology.



Features

  • WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
  • 800 x 800 IPS Display
  • -/< 5h of battery life
  • 128GB max storage capacity
  • 50mm lens
  • NETD -/< 20mk
  • 800 x 800 IPS round circular display
  • Integrated 1000m LRF
  • Lightweight and durable aluminium alloy
  • 6 image modes
  • 3 scene modes
  • Picture in picture
  • Recoil-activated recording
  • 21700 li-ion battery
  • 6 reticle styles and 4 colours



Specifications

Thermal Sensor
Type Uncooled VOx (vanadium oxide)
Resolution (Pixel) 480 x 360
Pixel Size (Um) 12 x 12
Netd -/< 20mK (0.02C)
Frame Rate (Hz) 50
Human Detection Distance (M) 2600
Optics
Objective Lens (Mm) 50
Optical Magnification (X) 3.3
Digital Zoom (X) 2/4/6/8
Field Of View (Horizontal) 5.0
Field Of View (Vertical) 5.0
Field Of View (Diagonal) 7.0
Eye Relief (Mm) 100
Diopter Adjustment (D) 5 - 3
Display
Type IPS
Resolution (Pixel) 800 x 800
Reticle Style 6
Reticle Colour 4 (Red/White/Yellow/Green)
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution (Pixel) 1536 x 1536
Photo Format .JPG
Video Resolution (Pixel) 768 x 768
Video Format .mp4
Storage (Gb) Micro SD card (Max. 128GB)
Image Engine Pard IREA
Main Function
LRF Detection Range (M/Yds) 1000/1200
Ballistic Calculator Yes
Pip Yes
Gyroscope Yes
Recoil-Activated Recording Yes
Loop Recording Yes
Hot Track Yes
E-Compass Yes
Microphone Yes
Firmware Upgrade Yes
Connections
USB Type-C Yes
HDMI Output Yes
Wi-Fi Yes
Supported Apps PardVision2
Power Supply
Battery Type Lithium-ion 21700x1
Output Voltage (V) 3.7
Operating Time (H) -/< 5
External Power Supply Type-C
Environmental Characteristic
Protective Class IP67
Operating Temp (C/F) -30 - +55 / -22 - +131
Recoil Resistance (J) 6000
Material
Housing Aluminium Alloy
Objective Lens All-glass multi-coated lens
Measurement
Product Dimension (With LRF, L X W X H, Mm) Ocelot 480-35mm lens: 182 x 68 x 79
  Ocelot 480-50mm lens: 182 x 68 x 79
N.W/Pcs (With LRF and Battery, G) Ocelot 480-35mm lens: 616.5g
  Ocelot 480-50mm lens: 647.5g
