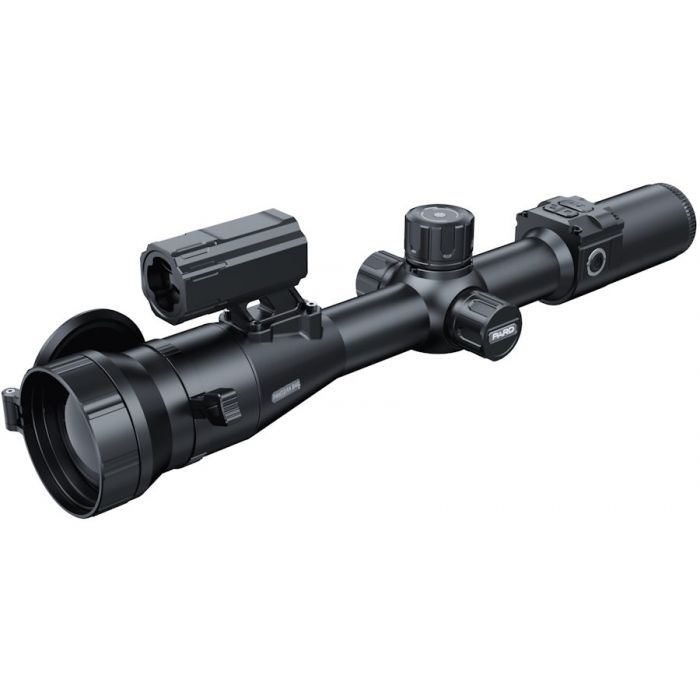

Pard Pantera 480 Laser Rangefinder Thermal Imaging Scope
480 x 360 Sensor Resolution
2600m Detection Range
3.3x Magnification
-/< 20 mK NETD


Description
Introducing the Pard Pantera 480 Laser Rangefinder Thermal Imaging Scope. Engineered for precision and adaptability in challenging environments. This advanced scope utilizes an uncooled VOx (vanadium oxide) sensor that delivers a resolution of 480 x 360 pixels, enabling users to detect thermal signatures with a remarkably low noise equivalent temperature difference of -/< 20mK (0.02C). With an optical magnification of 3.3x and a wide detection distance of up to 2600 meters, this scope is well-suited for various outdoor applications, ranging from hunting to surveillance.
Equipped with a user-friendly display featuring an 800 x 800 pixel IPS screen, the Pard Pantera 480 offers excellent visibility, complemented by six reticle styles available in four colour modes (Red, White, Yellow, Green). The scopes design also prioritizes user comfort, with a generous 100mm eye relief and adjustable diopter settings ranging from -5 to +3. To further enhance viewing options, it includes six image modes and three scene modes (City, Rain, and Forest), enabling users to adapt quickly to changing conditions and visualize their targets effectively.
Durability and versatility are hallmarks of the Pard Pantera 480, with an IP67 rating for weather resistance and the ability to withstand significant recoil up to 6000 Joules. The scope is powered by a rechargeable lithium-ion 18650 battery, providing approximately six hours of operational time. Additional features such as a built-in laser rangefinder with a detection range of 1000 meters (1200 yards), a ballistic calculator, and advanced recording functions (including recoil-activated recording and loop recording) make it a comprehensive tool for outdoor enthusiasts. With built-in Wi-Fi and support for microSD cards (up to 128GB), users can easily store and share their photos and videos, ensuring that they capture every moment in high detail. The Pard Pantera 480 is an exceptional thermal imaging scope that seamlessly combines advanced technology with practical functionality for enhanced outdoor experiences.
Features
- 6 reticle styles & 4 colour modes
- 800 x 800 IPS Display
- -/< 6h of battery life
- 50mm lens
- -/< 20mk (0.02c)
- 100mm long eye-relief
- 12um
- 6 image modes
- Rechargeable 18650 li-ion battery
- 3 scene modes
- 6000j recoil resistance
- Ip67 weather resistance
- Picture in picture
- Built-in Wi-Fi
Specifications
| Sensor | |
| Type | Uncooled VOx (vanadium oxide) |
| Resolution (Pixel) | 480 x 360 |
| Pixel Size (M) | 12 x 12 |
| Netd (Mk) | -/< 20 mK (0.02C) |
| Frame Rate (Hz) | 50 |
| Detection Distance (M) | 2600 |
| Optics | |
| Objective Lens (Mm) | 50 |
| Optical Magnification (X) | 3.3 |
| Digital Zoom (X) | 2/4/6/8 |
| Field Of View (Horizontal) | 5.0 |
| Field Of View (Vertical) | 5.0 |
| Field Of View (Diagonal) | 7.0 |
| Eye Relief (Mm) | 100 |
| Diopter Adjustment (D) | -5 - +3 |
| Display | |
| Type | IPS |
| Resolution (Pixel) | 800 x 800 |
| Reticle Style | 6 |
| Reticle Colour | Red/White/Yellow/Green |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
| Photo / Video | |
| Photo Resolution (Pixel) | 1536 x 1536 |
| Photo Format | .JPG |
| Video Resolution (Pixel) | 768 x 768 |
| Video Format | .mp4 |
| Storage (Gb) | Micro SD card (Max. 128GB) |
| Image Engine | Pard IREA |
| Main Function | |
| LRF Detection Range (M/Yd) | 1000/1200 |
| Ballastic Calculator | Yes |
| Pip | Yes |
| Hot Track | Yes |
| Gyroscope | Yes |
| Recoil-Activated Recording | Yes |
| Loop Recording | Yes |
| E-Compass | Yes |
| Microphone | Yes |
| Firmware Upgrade | Yes |
| Connections | |
| USB Type-C | Yes |
| HDMI Output | Yes |
| Wi-Fi | Yes |
| Supported Apps | PardVision2 |
| Power Supply | |
| Battery Type | Lithium-ion 18650x1 |
| Output Voltage (V) | 3.7 |
| Operating Time (H, Max) | -/< 6 |
| External Power Supply (V) | USB Type-C |
| Environmental Characteristic | |
| Degree Of Protection | IP67 |
| Operating Temp (C/F) | -30 - +55 / -22 - +131 |
| Recoil Resistance (J) | 6000 |
| Material | |
| Housing | Aluminium Alloy |
| Objective Lens | All-glass multi-coated lens |
| Measurement | |
| Product Dimension/With LRF (L X W X H, Mm) | Pantera 480-35mm Lens: 352 x 93 x 82 Pantera 480-50mm Lens: 364 x 93 x 82 |
| N.W/Pcs (With LRF and Battery, G) | Pantera 480-35mm Lens: 622 Pantera 480-50mm Lens: 681.5 |
