Pard Pantera 640 Laser Rangefinder Thermal Imaging Scope
640 x 512 Sensor Resolution
2600m Detection Range
2.5x Magnification
-/< 20 mK NETD


Description

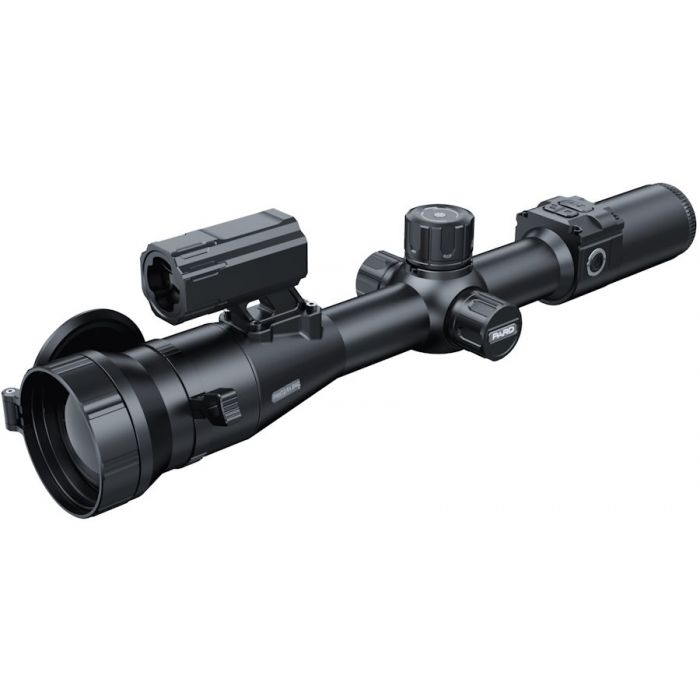

Introducing the Pard Pantera 640 Laser Rangefinder Thermal Imaging Scope. A sophisticated imaging tool designed for thermal detection and observation in various environments. Featuring an advanced uncooled VOx (vanadium oxide) sensor, it offers a resolution of 640 x 512 pixels, resulting in enhanced thermal imaging clarity along with a remarkably low noise equivalent temperature difference of -/< 20mK (0.02C). This capability allows users to efficiently identify targets in both day and night conditions, with a substantial detection distance of up to 2600 meters. With an optical magnification of 2.5x, the Pard Pantera 640 provides versatility in viewing, along with digital zoom options of 2x, 4x, 6x, and 8x. The scope features a wide field of view measuring 7.0 horizontally and vertically, which makes it easier to scan and track moving objects. Users enjoy enhanced comfort with a 100mm eye relief and adjustable diopter settings, accommodating various visual needs.
The display employs a high-resolution 800 x 800 pixel IPS screen, ensuring clear visibility in all lighting conditions, supported by six customizable reticle styles in four colour modes (Red, White, Yellow, Green). Additionally, the scope includes six image modes and three scene modes (City, Rain, Forest) to adapt to different environmental conditions. Built with durability in mind, the Pard Pantera 640 is rated IP67 for weather resistance, allowing it to function effectively in adverse conditions. It can withstand substantial recoil of up to 6000 joules, making it suitable for high-calibre firearms. The scope is powered by a rechargeable lithium-ion 18650 battery, offering up to six hours of operation.
In terms of functionality, the Pard Pantera 640 includes essential features such as a laser rangefinder with a detection range of 1000 meters (1200 yards), a ballistic calculator, and advanced recording capabilities, including recoil-activated recording and loop recording. It supports high-resolution photo capture at 1536 x 1536 pixels and video recording at 768 x 768 pixels, both stored on a microSD card (up to 128GB). Connectivity options include USB Type-C for power, HDMI output, and built-in Wi-Fi, which can interface with compatible apps like PardVision2. Its robust aluminium alloy housing and all-glass multi-coated lens contribute to its durability and optical performance. The Pard Pantera 640, with its combination of high-resolution imaging, advanced features, and rugged design, is an exceptional tool for outdoor enthusiasts and professional users alike, ensuring effective operation in the field.
Features
- 6 reticle styles & 4 colour modes
- 800 x 800 IPS Display
- -/< 6h of battery life
- 50mm lens
- -/< 20mk (0.02c)
- 100mm long eye-relief
- 12um
- 6 image modes
- Rechargeable 18650 li-ion battery
- 3 scene modes
- 6000j recoil resistance
- Ip67 weather resistance
- Picture in picture
- Built-in Wi-Fi
Specifications
| Sensor | |
| Type | Uncooled VOx (vanadium oxide) |
| Resolution (Pixel) | 640 x 512 |
| Pixel Size (Um) | 12 x 12 |
| Netd (Mk) | -/< 20 mK (0.02C) |
| Frame Rate (Hz) | 50 |
| Detection Distance (M) | 2600 |
| Optics | |
| Objective Lens (Mm) | 50 |
| Optical Magnification (X) | 2.5 |
| Digital Zoom (X) | 2/4/6/8 |
| Field Of View (Horizontal) | 7.0 |
| Field Of View (Vertical) | 7.0 |
| Field Of View (Diagonal) | 9.9 |
| Eye Relief (Mm) | 100 |
| Diopter Adjustment (D) | -5 - +3 |
| Display | |
| Type | IPS |
| Resolution (Pixel) | 800 x 800 |
| Reticle Style | 6 |
| Reticle Colour | Red/White/Yellow/Green |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
| Photo / Video | |
| Photo Resolution (Pixel) | 1536 x 1536 |
| Photo Format | .JPG |
| Video Resolution (Pixel) | 768 x 768 |
| Video Format | .mp4 |
| Storage (Gb) | Micro SD card (Max. 128GB) |
| Image Engine | Pard IREA |
| Main Function | |
| LRF Detection Range (M/Yd) | 1000/1200 |
| Ballastic Calculator | Yes |
| Pip | Yes |
| Hot Track | Yes |
| Gyroscope | Yes |
| Recoil-Activated Recording | Yes |
| Loop Recording | Yes |
| E-Compass | Yes |
| Microphone | Yes |
| Firmware Upgrade | Yes |
| Connections | |
| USB Type-C | Yes |
| HDMI Output | Yes |
| Wi-Fi | Yes |
| Supported Apps | PardVision2 |
| Power Supply | |
| Battery Type | Lithium-ion 18650x1 |
| Output Voltage (V) | 3.7 |
| Operating Time (H, Max) | -/< 6 |
| External Power Supply (V) | USB Type-C |
| Environmental Characteristic | |
| Degree Of Protection | IP67 |
| Operating Temp (C/F) | -30 - +55 / -22 - +131 |
| Recoil Resistance (J) | 6000 |
| Material | |
| Housing | Aluminium Alloy |
| Objective Lens | All-glass multi-coated lens |
| Measurement | |
| Product Dimension/With LRF (L X W X H, Mm) | Pantera 640-50mm Lens 364 x 93 x 82 |
| Pantera 640-75mm Lens 400 x 105 x 110mm | |
| N.W/Pcs (With LRF and Battery, G) | Pantera 640-50mm Lens 681.5 |
| Pantera 640-75mm Lens 945 |
