Pard SA62 Laser Rangefinder Thermal Imaging Scope
640 x 480 Sensor Magnification
1800m Detection Range
2.8x Magnification
25mK NETD


Description

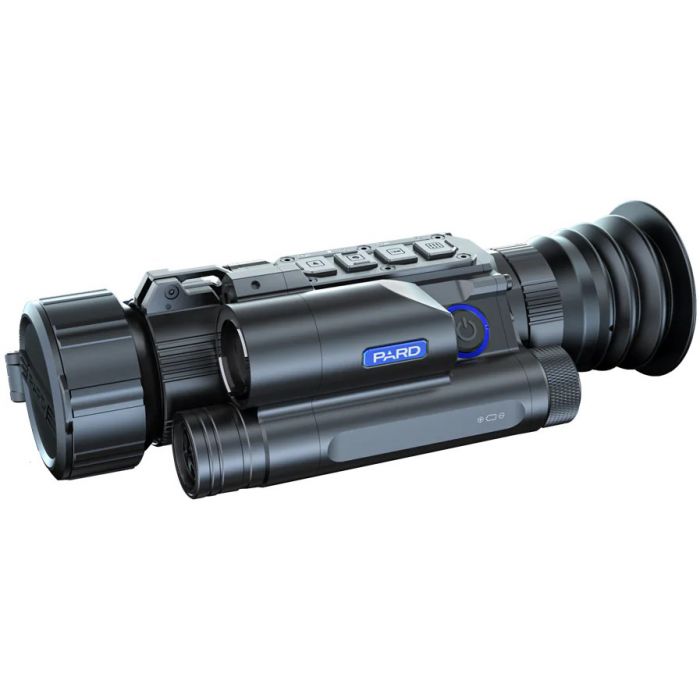

Introducing the Pard SA62 Laser Rangefinder Thermal Imaging Scope. An advanced thermal imaging device engineered for outdoor enthusiasts, hunters, and tactical professionals. Featuring a 45mm objective lens combined with a thermal resolution of 640 x 480 pixels, this scope delivers exceptional clarity and detail in varied lighting conditions. With a NETD sensitivity of < 25 mK, it effectively highlights even the smallest temperature differences, making it a powerful tool for identifying targets. The integrated laser rangefinder offers precise distance measurement up to 1000 meters, with impressive detection capabilities of 1800 meters for humans and 3300 meters for vehicles, ensuring versatility in various operational scenarios.
In terms of optics, the Pard SA62 offers 2.8x optical magnification, which can be digitally zoomed up to 44.8x through continuous digital zoom capabilities. The Picture-in-Picture (PIP) zoom feature enhances target visibility without losing context, while a generous field of view of 9.7 x 7.3 allows users to monitor wide areas effectively. The OLED display with a resolution of 1024 x 768 pixels offers customisable reticle styles and colours, adapting to individual preferences and enhancing target acquisition during day or night operations. Users can switch between different scene and image modes to optimise performance based on environmental conditions, including settings for city, rain, and forest.
Built to withstand outdoor challenges, the Pard SA62 is rated IP67, ensuring it is waterproof and dustproof for reliable operation in various weather conditions. Its compact and durable design is reinforced with an aluminium alloy housing, making it suitable for rugged use. The thermal scope also supports advanced functionalities like a self-activated recording, a ballistics calculator, and an E-compass, all contributing to its user-friendly experience. With a battery life of up to 5 hours and compatibility with external power sources via USB Type-C, the Pard SA62 is an essential tool for anyone requiring high-performance thermal imaging in the field.
Features
- WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, Sky
- 1024 x 768 OLED Display
- 5h of max battery life
- 128 GB Max Storage capacity
- Integrated ballistics calculator
- 12um netd -/< 25mk
- 1000m laser rangefinder
- Self-activated recording
- Ip67 waterproof
- 3 scene modes
- 6 colour palettes
- Infra-red image enhancement algorithm (irea)
- Focus lever
- Thermal imaging sensor
Specifications
| Sensor | |
| Type | Uncooled VOx(vanadium oxide) |
| Resolution (Px) | 640 x 480 |
| Pixel Size (M) | 12m x 12m |
| Netd (Mk) | 25mK (0.025C) |
| Frame Rate (Hz) | 50Hz |
| Human Detection Distance (M) | 1800 |
| Vehicle Detection Distance (M) | 3300 |
| Optics | |
| Objective Lens | 45mm |
| Optical Magnification (X) | 2.8x |
| Digital Zoom (X) | 2-8x |
| Pip Zoom (X) | 2X |
| Continuous Digital Zoom | 2.8-44.8X |
| Field Of View (Hxv) | 9.7 |
| 7.3 | |
| 12.2 | |
| Eye Relief (Mm) | 30mm |
| Diopter Adjustment (D) | 5D - +5D |
| Display | |
| Type | OLED |
| Resolution (Px) | 1024 x 768 |
| Reticle Style | 6 |
| Reticle Colour | 4 (Red, White, Yellow, Green) |
| Scene Mode | City, Rain, Forest |
| Image Mode | WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, Sky |
| Photo / Video | |
| Photo Resolution (Px) | 2592 x 1944 |
| Photo Format | .JPG |
| Video Resolution (Px) | 1024 x 768 |
| Video Format | .mp4 |
| Storage (Gb) | TF card (128 GB) (Max) |
| Image Engine | Pard IREA |
| Main Function | |
| LRF Detection Range (Yds) | 1200yds / 1000m |
| Ballistic Calculator | Yes |
| Pip | Yes |
| Gyroscope | Yes |
| Self-Motivated Recording | Yes |
| Loop Recording | Yes |
| Red Dot | Yes |
| E-Compass | Yes |
| Shutter | Mechanical shutter |
| Microphone | Yes |
| Illuminator | 1W (350mA) |
| Firmware Upgrade | Yes |
| Interfaces | |
| USB Type-C | Yes |
| HDMI Output | Yes |
| Connections | |
| Wi-Fi | Yes |
| Supported Apps | PardVision |
| Power Supply | |
| Battery Type | Lithium-ion 186501 |
| Output Voltage (V) | 3.7V |
| Operating Time (H) | 5h |
| External Power Supply (V) | Type-C |
| Environmental Characteristic | |
| Degree Of Protection | IP67 |
| Operating Temp (C) | -2050 |
| Recoil Power (J)/Shock Resistance (G) | 1000G |
| Material | |
| Housing | Aluminium Alloy |
| Objective Lens | All-glass multi-coated lens |
| Measurement | |
| Product Dimension (L X W X H, Mm) | SA62:195 x 77 x 56mm |
| SA62 LRF:195 x 79 x 59mm | |
| N.W/Pcs (Without Battery, G) | SA62: 425g |
| SA62 LRF: 455g |
