Pixfra Taurus T650 LRF Thermal Clip-On Scope

Manufacturer's Website

Description

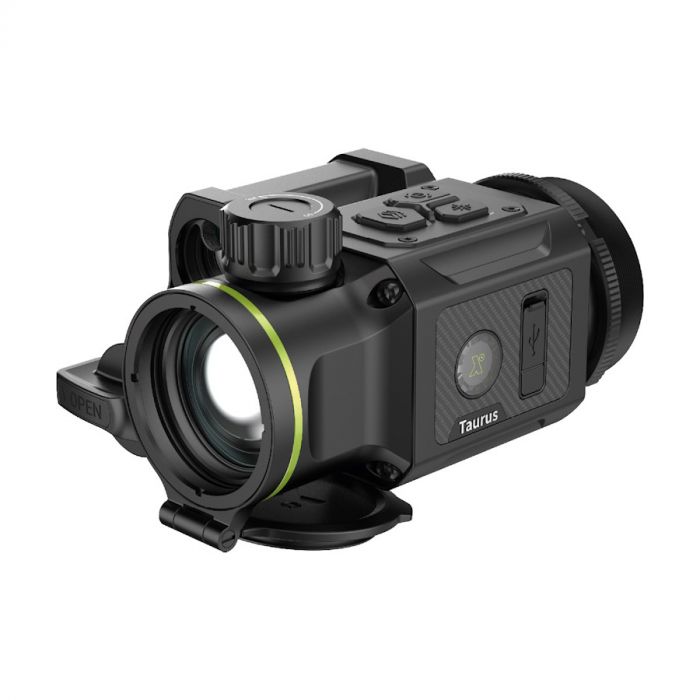

Introducing the Pixfra Taurus T650 LRF Thermal Clip-On Scope. Designed to combine thermal imaging capability with integrated ranging functionality in a compact, durable platform. Built around a 640 x 512 vanadium oxide uncooled focal plane detector with a 12 m pixel pitch, the device delivers detailed thermal imaging with a sensitivity of less than 18 mK at f/1.0. Its 50 mm focal length, F1.0 aperture and 50 Hz frame rate support clear, responsive viewing across a wide range of conditions.

The T650 LRF features a built-in laser rangefinder with a measuring distance of up to 1,000 m (3,280.84 ft), together with ballistic calculation functionality for additional shooting support. It offers a detection distance of up to 2,600 m (8,530.18 ft) and a field of view of 8.7 horizontally and 7.0 vertically, equivalent to approximately 15.4 m x 12.3 m at 100 m. The scope also provides a fine 0.9 cm click value at 100 m, allowing for precise adjustment when configuring the optic.

Thermal images are displayed through a 0.49-inch OLED screen with a resolution of 1920 x 1080. Users can choose between six colour palettes, including White Hot, Black Hot, Iron Red, Alarm, Amber and Emerald, allowing the display to be adapted to different environments and viewing preferences. The device also supports automatic, manual and external FFC calibration to help maintain consistent thermal image quality during operation. Built-in 32 GB storage provides space for captured images and video recordings, while integrated snapshot and video recording functions allow observations to be saved directly on the device. Wi-Fi hotspot functionality and Bluetooth remote controller support provide additional connectivity and control options. The Taurus T650 LRF also incorporates Pixfra's PIPS 2.0 image-processing technology as part of its thermal imaging system.

Power is supplied by a replaceable 18650 battery, providing a maximum operating time of more than six hours depending on use. Charging and external power are supported through a USB Type-C connection with a 5 VDC/2 A power supply. The device is designed for operation in temperatures ranging from -30 C to +55 C (-22 F to +131 F) and carries an IP67 protection rating for resistance against demanding environmental conditions. Constructed with a durable magnesium alloy exterior, the Pixfra Taurus T650 LRF measures approximately 139.9 mm x 101.8 mm x 73.4 mm (5.51" x 4.01" x 2.89") and has a net weight of 580 g (1.28 lb). Combining high-resolution thermal detection, long-range observation, integrated laser ranging, onboard recording and a rugged housing, the T650 LRF provides a versatile thermal clip-on solution for compatible optical setups.

Features

• Up to 6 Colour Palettes
• 1920 x 1080, 0.49 inch, OLED
• Up to -/>6 h Max Battery Life
• Built-in 32 GB Memory
• PIPS 2.0
• Built-in LRF 1000m with Ballistic calculates
• Ultra-Fine 0.9cm at 100m Click Value
• Durable magnesium alloy exterior
