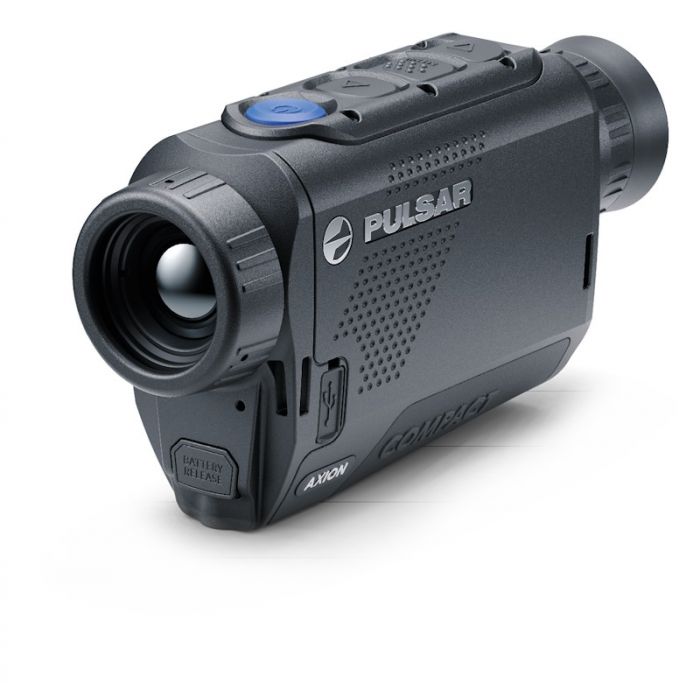

Pulsar Axion XQ19 Compact Thermal Monocular
384x288 Sensor Resolution
750m Detection Range
1.5-6x (x4 digital zoom) Magnification
< 18 System NETD


Description
Introducing the Pulsar Axion XQ19 Compact Thermal Monocular. A lightweight yet powerful thermal imaging device designed for hunters, wildlife observers, security professionals, and outdoor enthusiasts who require reliable performance in all lighting and weather conditions. Featuring a highly sensitive 384x288 uncooled thermal sensor with a 17m pixel pitch and an impressive 750-metre detection range, the Axion XQ19 delivers detailed thermal images that make it easier to detect heat signatures in complete darkness, fog, rain, or dense vegetation. Its compact design and durable aluminium alloy housing make it an ideal companion for use in the field.
Equipped with a 640x400 AMOLED display, the Axion XQ19 produces crisp, high-contrast images that remain comfortable to view during extended observation sessions. Users can select from up to nine colour palettes to optimise image presentation for different environments and personal preferences, while the Picture-in-Picture (PiP) function provides a magnified view without sacrificing the overall field of view. With 1.5x to 6x magnification, including 4x digital zoom, the monocular offers the flexibility to identify and observe targets at varying distances with greater precision. The Axion XQ19 is packed with practical features that enhance both usability and convenience. It includes 64GB of built-in storage for capturing high-quality photos and videos in .jpg and .mp4 formats, allowing users to record and review important moments directly from the device. Integrated Wi-Fi connectivity enables seamless pairing with the Stream Vision 2 app for wireless viewing, file sharing, firmware updates, and remote control via compatible smart devices. The monocular also offers a customisable User Mode, allowing users to save preferred image settings for a more personalised viewing experience.
Built for demanding outdoor conditions, the Pulsar Axion XQ19 is IPX7 waterproof rated, providing dependable performance in heavy rain and wet environments. It operates in temperatures ranging from -25C to +40C, making it suitable for use throughout the year. Power is supplied by a removable APS 3 Li-ion battery pack, delivering up to 8 hours of continuous operation on a single charge, with convenient charging via USB Type-C. Completing its versatile design is a standard 1/4-inch tripod mount, allowing for stable hands-free observation when required. Combining advanced thermal imaging technology, rugged construction, long battery life, and intuitive operation, the Pulsar Axion XQ19 Compact Thermal Monocular is an outstanding choice for anyone seeking dependable thermal performance in a compact package.
Features
- Up to 9 Colour Palettes
- 640x400 AMOLED
- Up to 8h Max Battery Life
- Built-in 64GB Storage
- Long-life removable battery
- Charging with USB Type-C
- Picture-in-Picture Function
- IPX7 Waterproof rated
- User mode
- Digital zoom
- Tripod mount 1.4
Specifications
| Brand | Pulsar |
| Sensor | at 17 um 384x288 |
| Objective lens | F19 / 1.0 |
| Magnification, x | 1.5 - 6 (x4 digital zoom) |
| FOV (HxV), degrees | 19.5 x 12.3 |
| FOV (HxV), mat100m | 34.7 x 21.5 |
| Diopter Adjustment, D | +4/-5 |
| Detection range | 750 |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, um | 17 |
| Sensor NETD, mK | < 25 |
| System NETD, mK | < 18 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F19 / 1.0 |
| Magnification, x | 1.5 - 6 (x4 digital zoom) |
| FOV (HxV), degrees | 19.5 x 12.3 |
| FOV (HxV), m at 100m | 34.7 x 21.5 |
| Diopter Adjustment, D | +4/-5 |
| Eye relief, mm | 14 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 640x400 |
| Range performance | |
| Detection range, m | 750 |
| Video recorder | |
| Video / photo resultion, pixel | 960600 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 64 |
| WI-FI | |
| Wireless protocol | Wi-Fi |
| Wireless standard | IEEE 802.11 b/g/n/ac |
| Environmental characteristics | |
| Degree of protection | |
| IP code (IEC60529) | IPX7 (waterproof) |
| Operating temperature range, | -25 +40 |
| Connections and compatibilities | |
| Mount type | 1/4" socket |
| Supported application | Stream Vision 2 |
| Power supply | |
| Output voltage, V | 3.0 - 4.2 |
| Battery type | APS 3 Li-ion Battery Pack |
| Capacity, mAh | 3200 |
| Operating time on battery pack, h at t22 | 8 |
| External power supply, V | 5 (USB Type C) |
| Weight & size | |
| Body material | Aluminum alloy |
| Dimensions, mm | 134.53871 |
| Weight, kg | 0.25 (without battery) |
