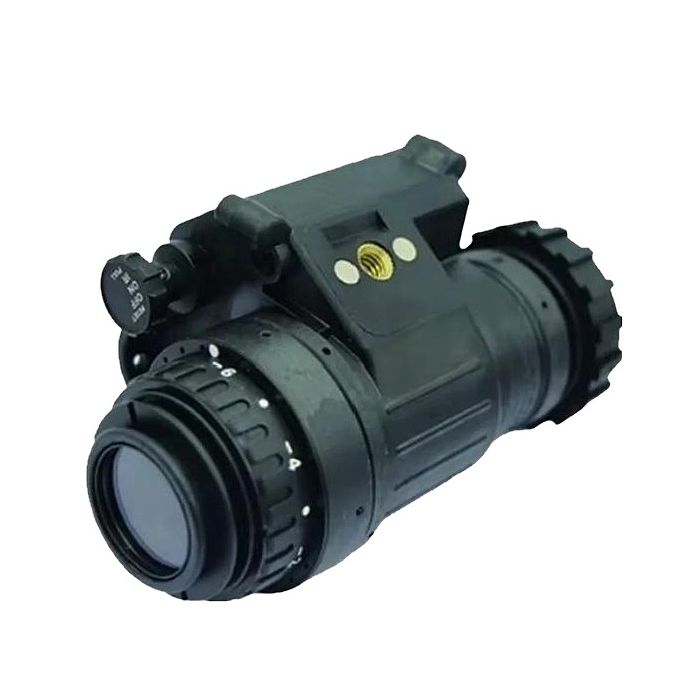

QCNV QPVS1440 Helmet-Mounted Night Vision Monocular

Description

Introducing the QCNV QPVS1440 Helmet-Mounted Night Vision Monocular. Designed for professionals and outdoor enthusiasts who need reliable, high-performance visibility in low-light environments. With a compact, ergonomic form factor, it offers comfort during extended operations while maintaining intuitive, glove-friendly controls for power, mode switching, and focus adjustments. The device is optimized to reduce image noise and glare across diverse terrains, including forests, grasslands, and urban areas, ensuring users can identify targets and navigate safely in dim conditions. Its 1x magnification with a 3x lens provides both close and moderate-range observation, making it versatile for multiple field applications.

Equipped with advanced Gen3 or Gen2+ MX10160/MX11769 image intensifier tubes, the QPVS1440 delivers high-resolution imaging between 6472 line pairs per millimeter, providing crisp, detailed visuals even in near-total darkness. The 40 field of view, combined with smooth edge-to-center clarity, allows rapid scene scanning with minimal eye strain, which is essential for extended surveillance or search operations. Users can manually adjust the gain to optimize image brightness depending on environmental conditions, while the -6 to +2 diopter range allows precise visual tuning for individual eyesight requirements.

The monocular is built to withstand harsh outdoor conditions, featuring an IP67-rated rugged housing that resists dust, water, and shocks. Its 25mm eyepiece and f/1.2 objective lens support a focus range from 25 cm to infinity, providing flexibility for observing both near and distant objects. Lightweight at under 265g (excluding battery) and compact in size (109 x 58 x 74 mm), it is easy to mount on helmets, headgear, or handheld configurations, making it ideal for security patrols, wildlife observation, night hunting, and camp guarding.

Powered by a single 1.5V AA battery, the QPVS1440 offers up to 40 hours of continuous operation, enabling extended missions without frequent battery changes. Its wide operational temperature range (-51C to +49C) and storage capability down to -51C make it dependable in extreme environments. Overall, the QCNV QPVS1440 combines ergonomic design, rugged durability, and advanced optics to deliver a versatile and dependable night vision solution for professionals and outdoor enthusiasts alike.

Features

• 1x,(3x lens) Magnification
• 64-72lp Resolutoin
• -6-+2 Diopter
• IP67 Rating
• 25cm-infinity Focus range
• EFL 25mm eyepiece

Specifications
