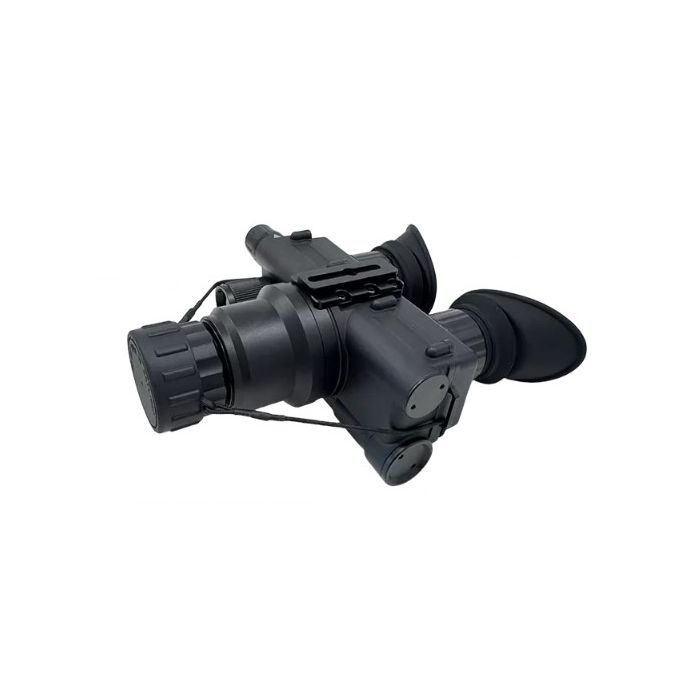

QCNV QVS 7 Binocular Night Vision Goggles

Description

Introducing the QCNV QVS 7 Binocular Night Vision Goggles. Engineered to deliver reliable, high-performance visibility in low-light and nighttime environments. Built around a super second-generation image intensifier tube with a figure of merit (FOM) exceeding 1400, the device provides clear and detailed imaging even under minimal illumination. Its integrated infrared-assisted lighting enhances usability in complete darkness, while the automatic strong light protection system safeguards the internal components from sudden exposure to bright light sources, ensuring consistent performance and durability.

A defining feature of the QVS7 is its dual-tube optical architecture, which significantly improves depth perception and situational awareness compared to traditional monocular systems. With a wide field of view of approximately 42 degrees at 1x magnification and 12 degrees at 3x, users can maintain strong spatial awareness in dynamic environments. This makes the goggles especially suitable for prolonged field operations where clarity, comfort, and accuracy are critical. The adjustable interpupillary distance (5571 mm) and diopter range (+5/-5) further enhance user customization and viewing comfort.

Optically, the system is equipped with a fast F1.2, 25mm lens and a multilayer composite broadband coating applied advanced vacuum ion deposition. This ensures excellent light transmission and image sharpness. With a resolution of 64 and a signal-to-noise ratio of 28 dB, the QVS7 produces crisp visuals with minimal distortion. The device also offers an observation distance of up to 200250 meters, making it practical for surveillance, navigation, and reconnaissance tasks. Additionally, the built-in 850nm infrared auxiliary light source expands usability in zero-light conditions.

Durability and reliability are central to the QVS7s design. Constructed from full aviation-grade aluminum alloy, the housing is both lightweight (under 400g) and exceptionally rugged. It is rated IP67 for dust and water resistance, ensuring dependable operation in harsh environments. The unit operates effectively across a wide temperature range from -50C to +55C and supports up to 10,000 hours of failure-free operation. Powered by two AA batteries, it offers up to 60 hours of continuous use without infrared and 35 hours with IR enabled, making it suitable for extended missions without frequent battery replacement.

Additional advanced features include full solid-state, contactless flip detection for automatic orientation recognition, and optional video output capabilities for recording night vision footage. These enhancements make the QCNV QVS7 not only a powerful observation tool but also a versatile platform for modern tactical and professional applications. Whether deployed by defense teams, security personnel, or outdoor specialists, the QVS7 stands out as a dependable and high-performing night vision solution.

Features

• 64 Resolution
• 1x - 3x Amplification ploidy
• 850-950 Optical Sensitivity
• 200-250m Observation distance
