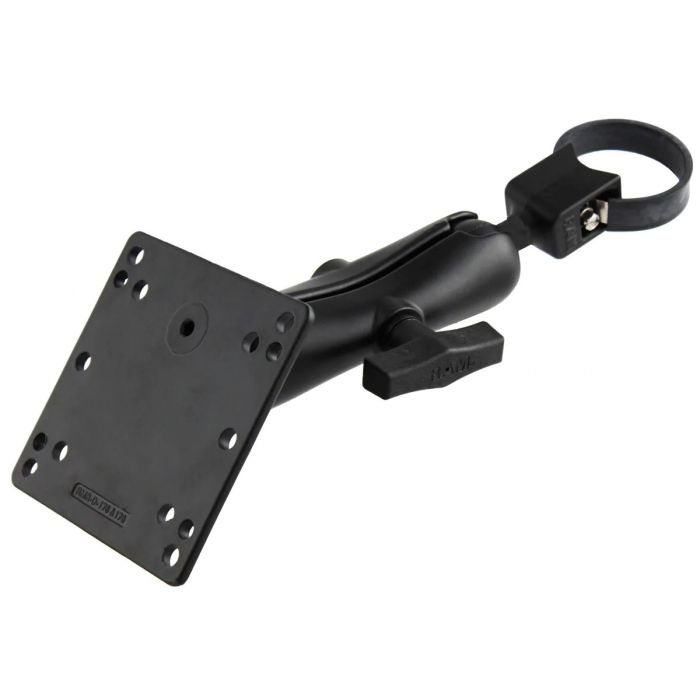

RAM 108B-246U Strap Hose Clamp Mount With 100x100mm VESA Plate
R2,269.00
SKU
RAM-108B-246U
Consists of a strap clamp
1.5" diameter ball base
Standard length double socket arm
Description
The RAM 108B-246U Strap Hose Clamp Mount With 100x100mm VESA Plate consists of a strap clamp 1.5" diameter ball base, standard length double socket arm and VESA (4 X 75mm) (4 X 100mm) plate. The strap will accommodate rails from 1" to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent scratching of the mounting surface. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner.
Features
- Consists of a strap clamp
- 1.5" diameter ball base
- Standard length double socket arm
- Strap will accommodate rails from 1" to 2.1"
- Rubber protection strip
Specifications
| Brand | RAM |
| Product Dimensions | |
| Overall Height | 9" |
| Clamp Range | 1" - 2.1" Diameter |
| Socket To Socket Length | 4.66" |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (1) 20 worm drive strap clamp
- (1) 28 worm drive strap clamp
- (1) 6" rubber strip
- (4) .312" x .187" shoulder washers
| Free Shipping | No |
|---|
