RAM Brake/Clutch Reservoir Mount For Delorme Earthmate PN-30, 60
R1,949.00
SKU
RAM-B-174-DEL1
Double socket arm
Diamond adapter base
Custom high strength composite cradle
Description

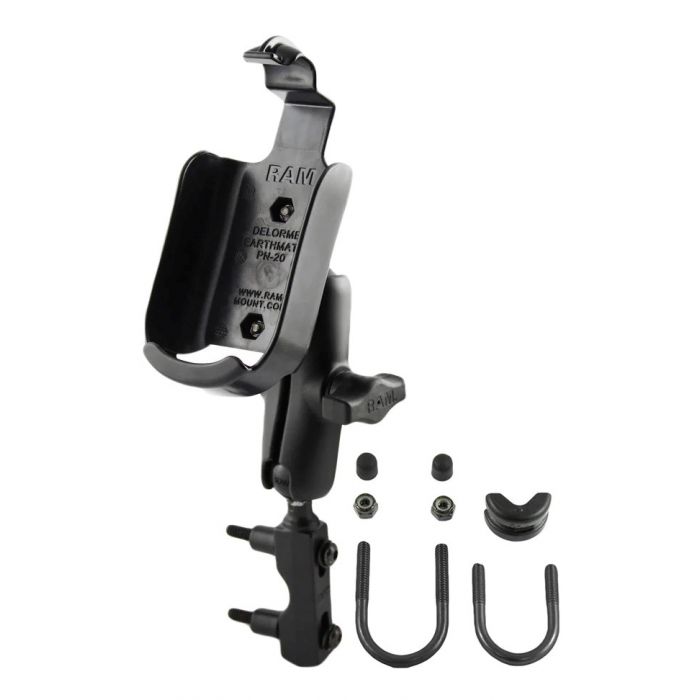

The RAM Brake/Clutch Reservoir Mount For Delorme Earthmate PN-30, 60 consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond adapter base and custom high strength composite cradle for the Delorme Earthmate. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Delorme Earthmate motorcycle mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
Features
- Double socket arm
- Diamond adapter base
- Custom high strength composite cradle
- Patented rubber ball and socket system
- With adjustment points at the base and cradle
Specifications
| Clamp Range | .5" - 1.25" Diameter |
| Socket To Socket Length | 3" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum/High Strength Composite |
Hardware Included
- Assembly hardware
- (2) m6 x 55mm hex bolts
- (2) 1/4-20 x 2" hex bolts
- (2) 1/4"-20 x 2.5" hex bolts
- (2) 1/2" spacers
- (2) 1/4" split lock washers
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
