RAM Brake/Clutch Reservoir Mount For Garmin nuvi 550, zumo 220
R1,849.00
SKU
RAM-B-174-GA32U
Double socket arm
Hardware for mounting
Diamond adapter base
Description

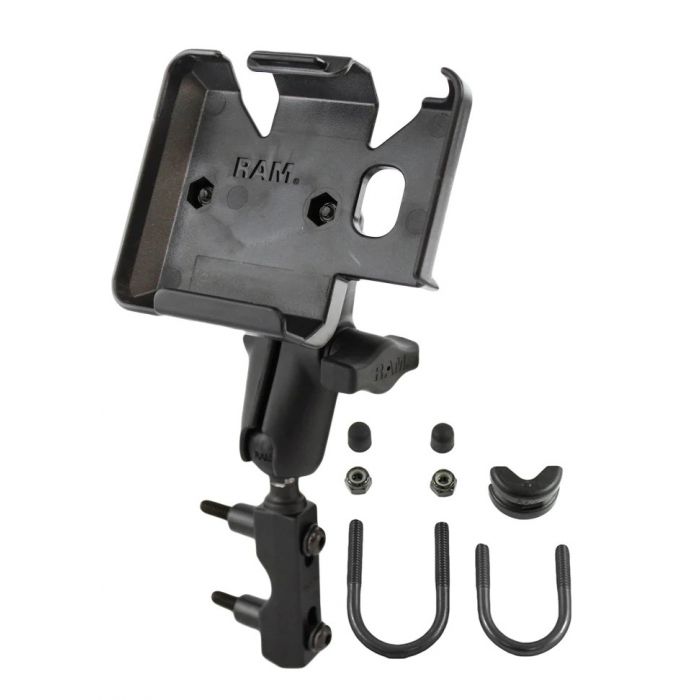

The RAM Brake/Clutch Reservoir Mount For Garmin nuvi 550, zumo 220 consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 500 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
Features
- Double socket arm
- Hardware for mounting
- Diamond adapter base
- Custom high strength composite cradle
- For the Garmin nuvi 500 series
Specifications
| Clamp Range | .5" - 1.25" Diameter |
| Socket To Socket Length | 3" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum/High Strength Composite |
Hardware Included
- Assembly hardware
- (2) m6 x 55mm hex bolts
- (2) 1/4-20 x 2" hex bolts
- (2) 1/4"-20 x 2.5" hex bolts
- (2) 1/2" spacers
- (2) 1/4" split lock washers
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
