RAM Chrome Motorcycle Brake/Clutch Reservoir Mount With Round Plate
R4,279.00
SKU
RAM-B-174CH-202U
Chrome 1" diameter rubber ball
Double socket arm
Hardware for mounting
Description

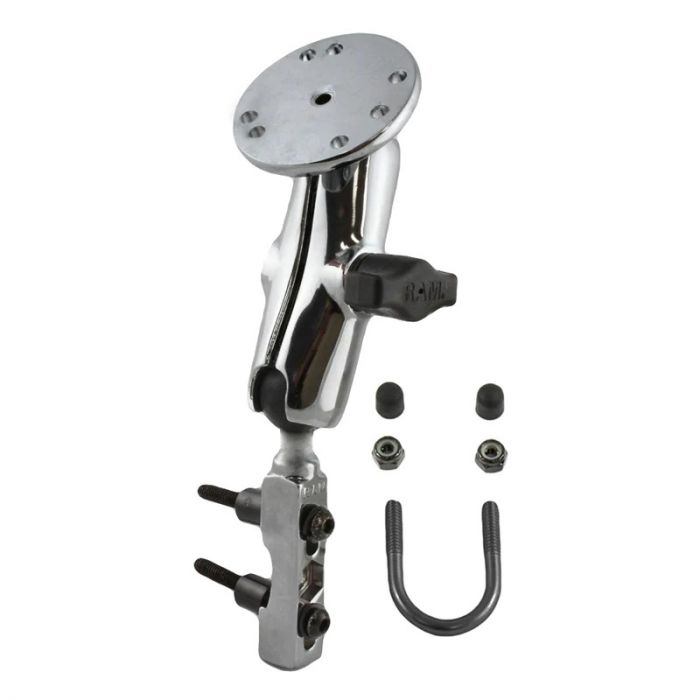

The RAM Chrome Motorcycle Brake/Clutch Reservoir Mount With Round Plate consists of a chrome 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter and 2.5" diameter round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
Features
- Chrome 1" diameter rubber ball
- Double socket arm
- Hardware for mounting
- Contains the universal AMPs hole pattern
- Patented rubber ball and socket system
Specifications
| Clamp Range | .5" - 1.25" Diameter |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) m6 x 55mm hex bolts
- (2) 1/4-20 x 2" hex bolts
- (2) 1/4"-20 x 2.5" hex bolts
- (2) 1/2" spacers
- (2) 1/4" split lock washers
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
| Free Shipping | No |
|---|
