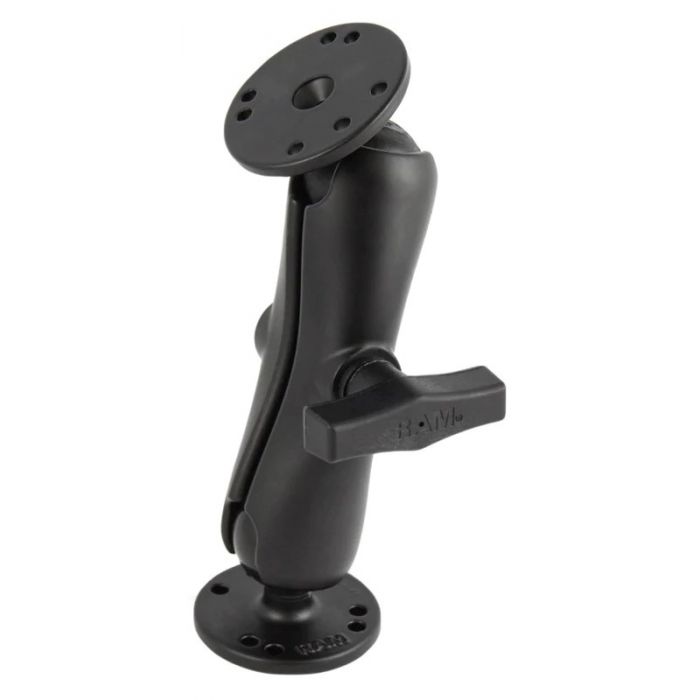

RAM Double Ball Mount For Raymarine Dragonfly Series
R1,849.00
SKU
RAM101RYM1
Universal AMPS hole pattern
Patented rubber ball and socket system
Drill-down mounting solution
Description
The RAM Double Ball Mount For Raymarine Dragonfly Series consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS hole pattern and 6 inch double socket arm. Included are (3 quantity) (8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
Features
- Universal AMPS hole pattern
- Patented rubber ball and socket system
- Drill-down mounting solution
- Allowing for almost infinite adjustment and perfect viewing angles
Specifications
| Brand | RAM |
| Product Dimensions | |
| Overall Height | 7.35" |
| Socket To Socket Length | 4.66" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (3) 8-32 x 3/4" machine screws
- (3) 8-32 nylock nuts
- (3) .312" x .187" shoulder washers
| Free Shipping | No |
|---|
