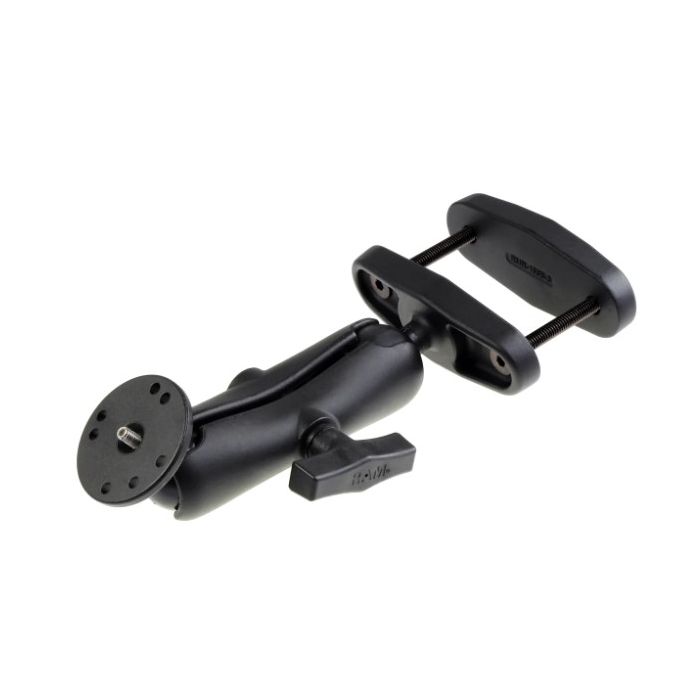

RAM Double Ball Mount With 3" Square Post Clamp Base and 1/4"-20 Stud
R2,769.00
SKU
RAM202A2473U
Medium double socket arm
3" Square Post Clamp Base
2.5" diameter round plate
Description
The RAM Double Ball Mount With 3" Square Post Clamp Base and 1/4"-20 Stud consists of a medium double socket arm, a 3" Square Post Clamp Base, and a 2.5" diameter round plate with AMPS hole pattern and a 1/4"-20 threaded stud.
Features
- Medium double socket arm
- 3" Square Post Clamp Base
- 2.5" diameter round plate
- With AMPS hole pattern
Specifications
| Hardware Included | (2) 5/16"-18 X 3" Machine Screws/(2) 5/16"-18 Nylock Nuts |
| Product Dimensions | |
| Overall Height | 7.85" |
| Clamp Range | 3" Max Width |
| Socket To Socket Length | 4.66" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
| Free Shipping | No |
|---|
