RAM Double Ball Mount With Drill-Down U-Bolt & Adhesive Bases
R1,769.00
SKU
RAM-B-101U-CR1
Medium length b-size arm
Two 2.5" diameter round plates
Universal amps hole pattern
Description

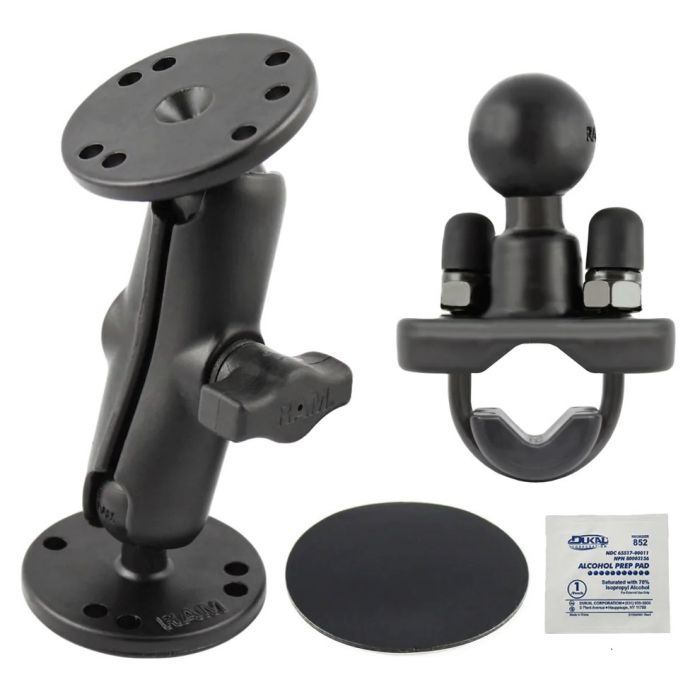

The RAM Double Ball Mount With Drill-Down U-Bolt & Adhesive Bases consists of a medium length B-size arm with two 2.5" diameter round plates with universal AMPS hole pattern. This mount also includes a 2.5" diameter double sided adhesive pad and a U-Bolt base with 1" diamter B-size ball. The U-Bolt base is compatible with round rails between .5" and 1.25" in diameter.
Features
- Medium length b-size arm
- Two 2.5" diameter round plates
- Universal amps hole pattern
- Includes a 2.5" diameter double sided adhesive pad
- U-bolt base with 1" diamter b-size ball
- Compatible with round rails between .5" and 1.25"
Specifications
| Brand | RAM |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (1) 2 7/16" double adhesive pad
- (1) alcohol prep pad
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
| Free Shipping | No |
|---|
