RAM Double Ball Mount with Steel Backing Plate
R1,839.00
SKU
RAM101BSAE1P2U
Drill-down mount with two 2" x 2.5" rectangular base
Pre-drilled holes at each corner of the base plate
Connects to RAM components containing the universal AMPS hole pattern
Description

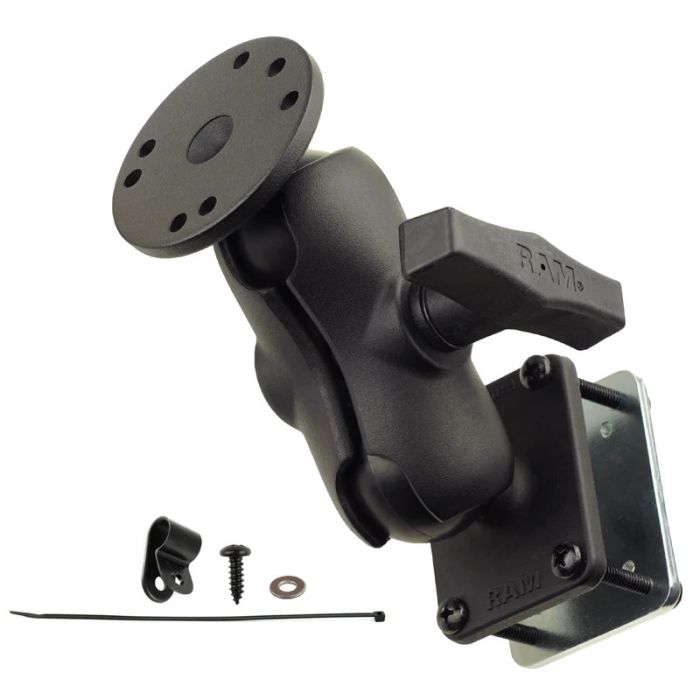

The RAM Double Ball Mount with Steel Backing Plate consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Features
- Drill-down mount with two 2" x 2.5" rectangular base
- Pre-drilled holes at each corner of the base plate
- Connects to RAM components containing the universal AMPS hole pattern
- Made of powder-coated, marine-grade aluminum
- Durability and reliability in the most demanding environments
Specifications
| Brand | RAM |
| Product Dimensions | |
| Overall Height | 5.225" |
| Socket To Socket Length | 2.5" |
| Hole Pattern | |
| Round Plate | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Rectangular Plate | 1.5" X 2" |
| Plate Size | |
| Round Plate | 2.5" Diameter |
| Rectangular Plate | 2" X 2.5" |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
| High Strength Composite | Steel |
| Packaging Type | Poly Bag |
| Weight | 1.17 Lb |
Hardware Included
- (1) 2.1 x 2.6" steel backing plate
- (4) 10-24 x 1.5" machine screws
- (4) 10-24 nylock nuts
- (1) 8 x 1/2" sheet metal screw
- (1) 8 washer
- (1) 5/16" wire clip
- (1) 8" zip tie
| Free Shipping | No |
|---|
