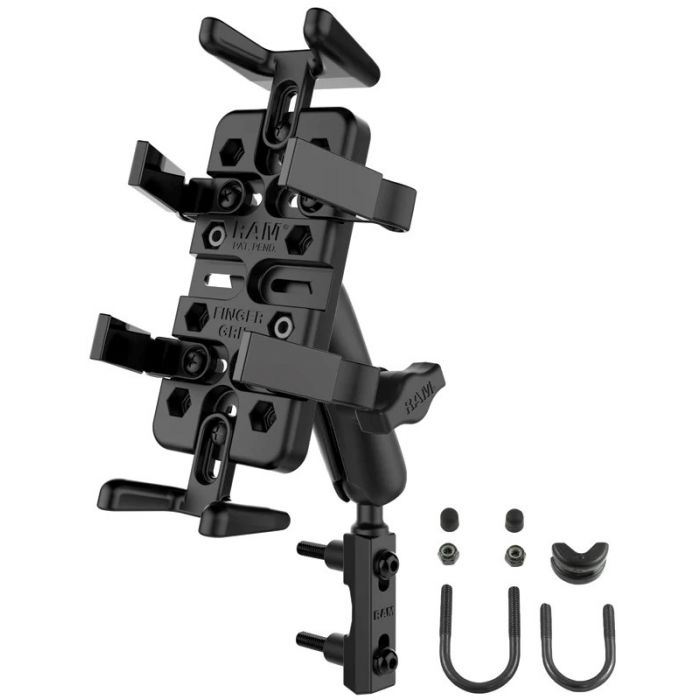

RAM Finger Grip Universal Mount With Brake/Clutch Reservoir Base
R2,609.00
SKU
RAM-B-174-UN4U
Double socket arm
Diamond adapter base
High strength universal Finger Grip cradle
Description
The RAM Finger Grip Universal Mount With Brake/Clutch Reservoir Base consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, diamond adapter base and high strength universal Finger Grip cradle. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Features
- Double socket arm
- Diamond adapter base
- High strength universal Finger Grip cradle
- Rugged design
Specifications
| Holder Dimensions | |
| Height Range | 7.25" max (using optional supports) |
| Width Range | 1.25" - 3.5" |
| Max Depth | 1.5" |
| Clamp Range | .5" - 1.25" diameter |
| Socket To Socket Length | 3" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 lbs |
| Heavy-Duty Use | 1 lb |
| Materials | |
| Marine-Grade Aluminum | |
| High Strength Composite |
Hardware Included
- Assembly hardware
- (2) m6 x 55mm hex bolts
- (2) 1/4-20 x 2" hex bolts
- (2) 1/4"-20 x 2.5" hex bolts
- (2) 1/2" spacers
- (2) 1/4" split lock washers
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (1) 1/4"-20 u-bolt for 1" - 1.25" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
