RAM GDS Audio Amplified Speaker with PTT Breakout Feature

R2,879.00
SKU
RAMSPEAKA02

Ptt-enabled amplification speaker with independent adjustable volume knob

Includes hardwire power input cable, audio input cable and audio output cable

99db max volume level

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website



Description

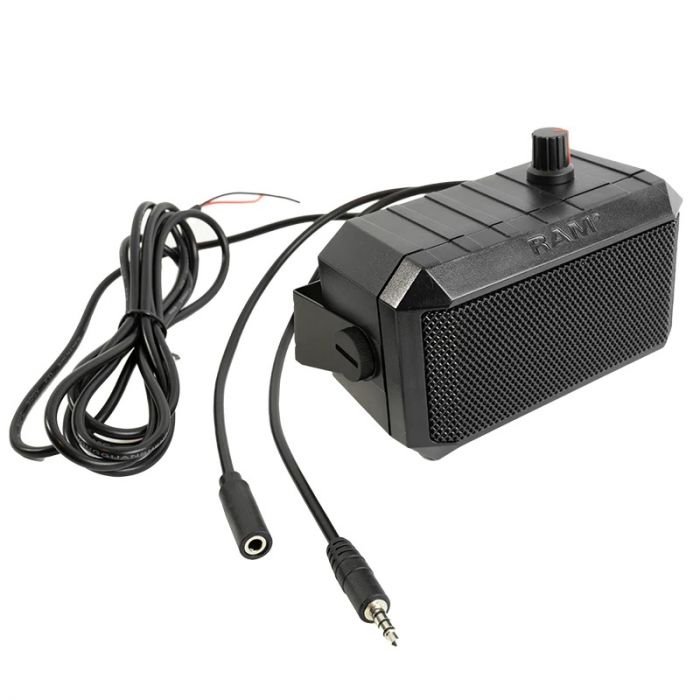

The RAM GDS Audio Amplified Speaker with PTT Breakout Feature can be hardwired into the cab of your vehicle with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS Ecosystem, the speaker can be mounted to any GDS vehicle dock using the RAM short bracket adapter or RAM standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS vehicle dock.



Features

  • Ptt-enabled amplification speaker with independent adjustable volume knob
  • Includes hardwire power input cable, audio input cable and audio output cable
  • 99db max volume level



Specifications

Hardware Included Mounting Bracket/(2) 8-32 X 5/8" Machine Screws/(2) 8-32 Nylock Nuts
Speaker Specifications
Max Volume Level 99Db
Wattage 8 / 10W Rated Speaker
Input Voltage 9V - 26V Dc
Power Output
Peak Power 10W
Rms Power 8W
Input Connector 3.5Mm Trrs Connector, With A Modified Ctia Pin Map For Audio In/Out
Input Cable Length 1150Mm Long Red/Black Power Cable
Output Cable Length 150Mm Long Audio Cable With 3.5Mm Mono Plug Jack
Operating Temperature -20C To +80C
Storage Temperature -40C To +85C
