RAM Glare Shield Clamp Double Ball Mount With 1/4"-20 Threaded Stud
R1,699.00
SKU
RAMB177237
Glare shield clamp base
Short double socket arm
1" diameter rubber ball
Description

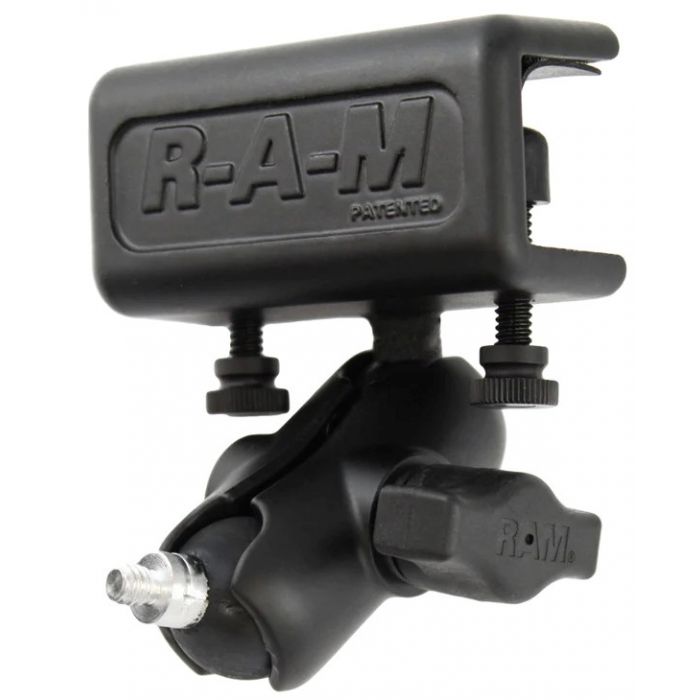

The RAM Glare Shield Clamp Double Ball Mount With 1/4"-20 Threaded Stud consists of a glare shield clamp base, short double socket arm and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Features
- Glare shield clamp base
- Short double socket arm
- 1" diameter rubber ball
- Connected to a 1/4"-20 camera thread
Specifications
| Clamp Range | .625" Max |
| Socket To Socket Length | 1.75" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) 1/4"-20 x 1.25" composite thumb screws
- (2) rubber caps
- (1) 1.93" x 3.06" rubber adhesive pad
| Free Shipping | No |
|---|
