RAM Handlebar U-Bolt Double Ball Mount - C Size Long
R2,419.00
SKU
RAM231D202U
Stainless steel u-bolt base
LONG double socket arm
Round base adapter
Description

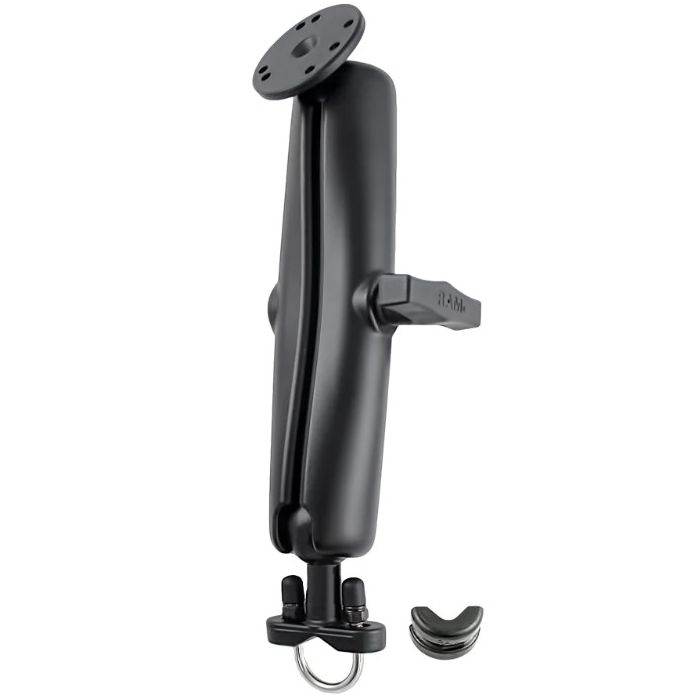

The RAM Handlebar U-Bolt Double Ball Mount - C Size Long consists of a stainless steel u-bolt base, 1.5" diameter LONG double socket arm and round base adapter that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1" in diameter. The base includes black cover aps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
Features
- Stainless steel u-bolt base
- LONG double socket arm
- Round base adapter
- Contains the universal AMPs hole pattern
Specifications
| Brand | RAM |
| Clamp Range | .5" - 1" Diameter |
| Socket To Socket Length | 8" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (1) 1/4"-20 u-bolt for .5" - 1" rails
- (2) 1/4"-20 nylock nuts
- (2) rubber caps
- (1) u-bolt spacer
