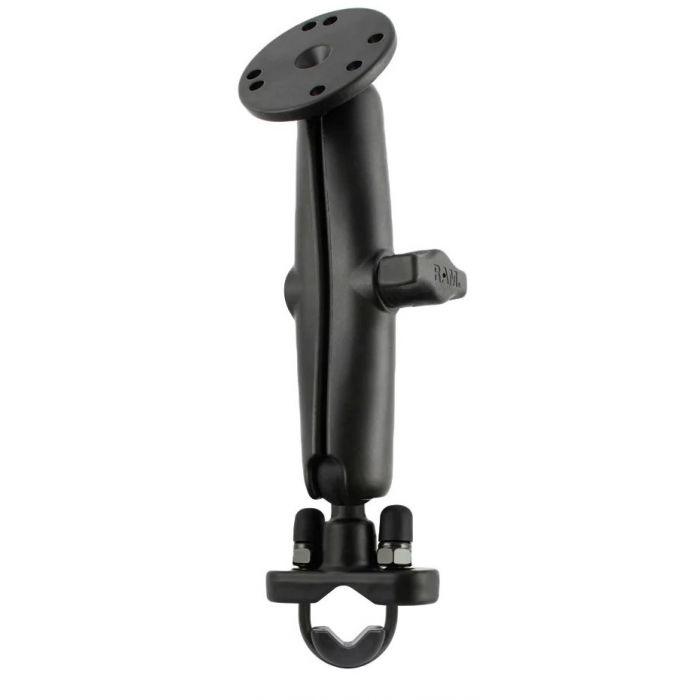

RAM Handlebar U Bolt Double Ball Mount With Round Plate - B Size, Long
Zinc coated u-bolt base
6" long double socket arm
2.5" diameter round base


Description
The RAM Handlebar U Bolt Double Ball Mount With Round Plate - B Size, Long consists of a zinc coated u-bolt base, 6" long double socket arm and 2.5" diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
Features
- Zinc coated u-bolt base
- 6" long double socket arm
- 2.5" diameter round base
- Universal AMPs hole pattern
- Allowing for almost infinite adjustment
Specifications
| Clamp Range | .5" - 1.25" Diameter |
| Socket To Socket Length | 5.31" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
| Free Shipping | No |
|---|
