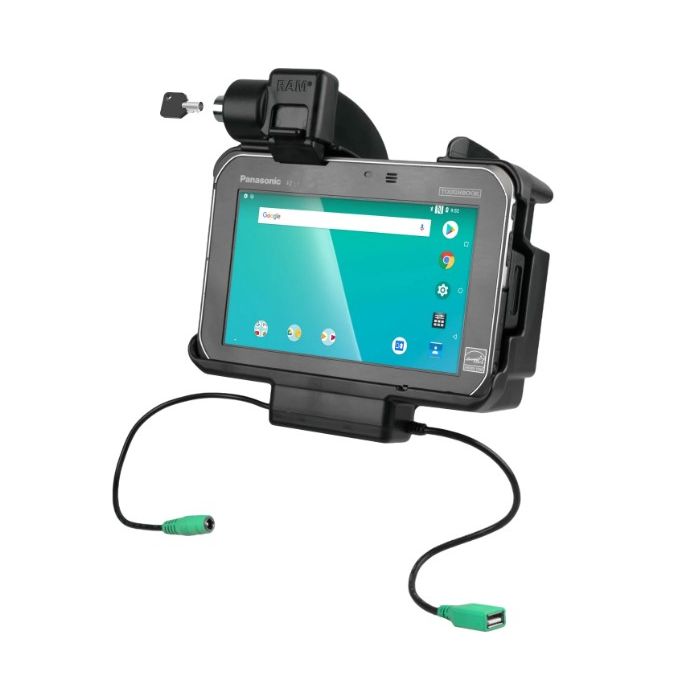

RAM Key Locking Power + Data Dock for Panasonic FZ-S1 & FZ-L1

Description

The RAM Key Locking Power + Data Dock For Panasonic Fz-S1 & Fz-L1 features data and charging capabilities and a key lock for theft deterrence, the RAM Vehicle Dock for the Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

Features

• Key locking power and data dock
• For the Panasonic FZ-S1 & FZ-L1 tablet
• Via DC 5.5mm power jack and USB Type A for adding a peripheral
• Compatible with C and D size RAM

Specifications

Hardware Included

• (4) 8-32 x 5/8" machine screws
• (4) 8-32 nylock nuts
