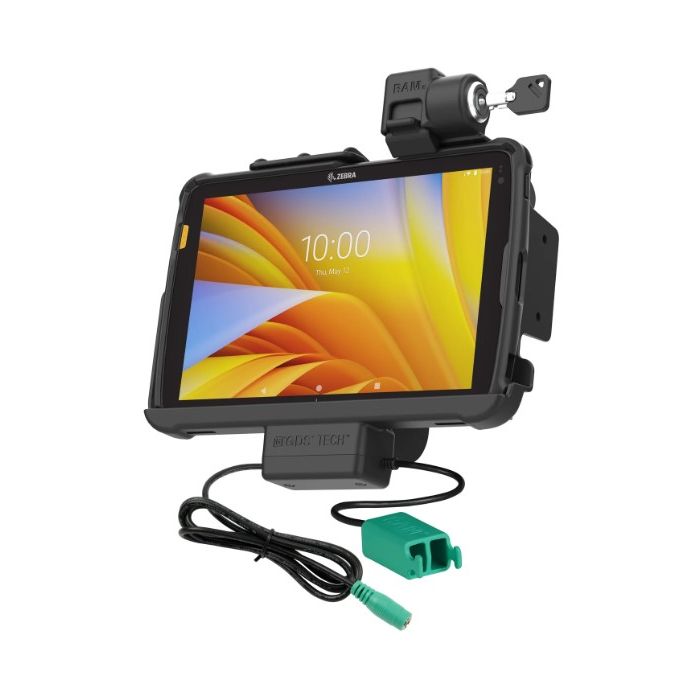

RAM Locking Tough Dock Power + Dual USB for Zebra ET4x Tablet - 10"

Manufacturer's Website

Description

The RAM Locking Tough Dock Power + Dual USB for Zebra ET4x Tablet - 10" allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.

Features

• Charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame
• Via DC 5.5mm power jack and dual USB Type A connector
• MIL-STD 810G Shock and Vibration tested
• Compatible with C and D size RAM 4-hole AMPS

Specifications

Hardware Included

• (2) keys
• (1) side bracket for accessory mounting
• (4) 8-32 x 5/8 machine screws
• (2) 8-32 x 1/2 machine screws
• (6) 8-32 nylock nuts
• (4) 10-24 x 5/8 machine screws
• (4) 10-24 nylock nuts
• (2) small cable ties
