Ram Mount Mobile Printer Vehicle Pole Mount - Rear Feed

Manufacturer's Website

Description

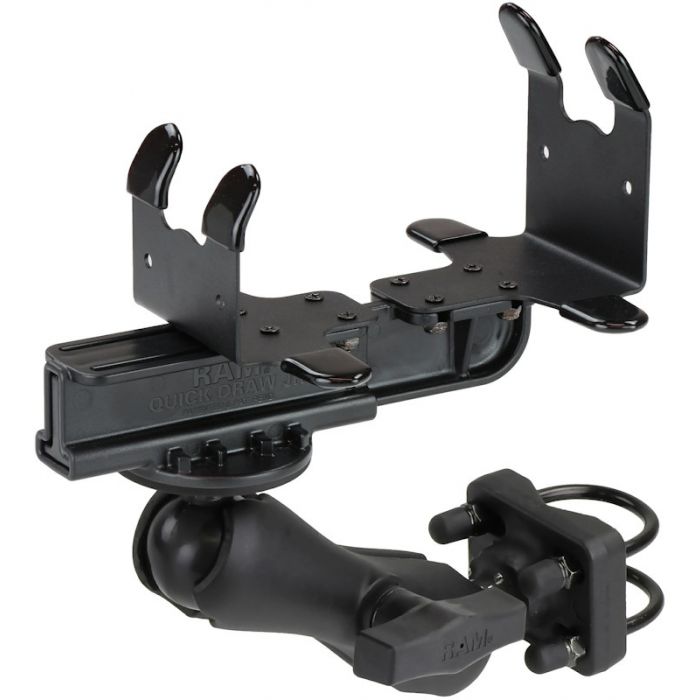

Introducing the Ram Mount Mobile Printer Vehicle Pole Mount - Rear Feed. The RAM Mount Mobile Printer Vehicle Pole Mount (RAM-VPR-107-1) is a robust and adaptable solution designed for securely mounting Zebra, Intermec, or Printronix printers in a vehicle. The mount features a Quick-Draw holder with a spring-loaded mechanism, facilitating easy and efficient removal of the printer for storage or on-the-go printing. The holder has a unique design with small side clamp plates at each end, ensuring a secure fit around the edges of the printer.

Constructed from high-quality materials, including powder-coated steel, marine-grade aluminium, and high-strength composite, the mount offers durability and reliability in demanding environments. The double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter, providing versatility in mounting options.

The holder dimensions accommodate printers with a width range of 6.125" to 10", and the maximum height varies between 2.5" (tall side) and 1.75" (short side). The socket-to-socket length is 4.66", and the C Size ball (1.5") allows compatibility with RAM's double socket arms and other C Size components.

Weighing 2.3 lbs, the mount strikes a balance between strength and portability. With a weight capacity of 4 lbs for standard use and 3 lbs for heavy-duty use, this mount is a reliable choice for professionals requiring a secure and convenient solution for mobile printing applications. The use of stainless steel components further enhances the mount's durability and resistance to environmental conditions.

Features

• Quick-draw holder
• Spring-loaded mechanism
• Double U-bolt base
• Stainless steel
• High-strength composite
• Powder-coated, marine-grade aluminium

Specifications

Package Contents

• 2x 1/4" / 10.16cm-20 u-bolts for 1.25" / 3.18cm - 1.5" / 3.81cm rails
• 4x 1/4" / 10.16cm-20 nylock nuts
• 4x rubber caps
