RAM Pin Lock Marine Electronic Mount with Gimbal Knob - D Size, Short
R5,239.00
SKU
RAM-SG-D-111U-C
Consists of a 3.68" diameter round base
Short length double socket arm
11" x 3" rectangular base
Description

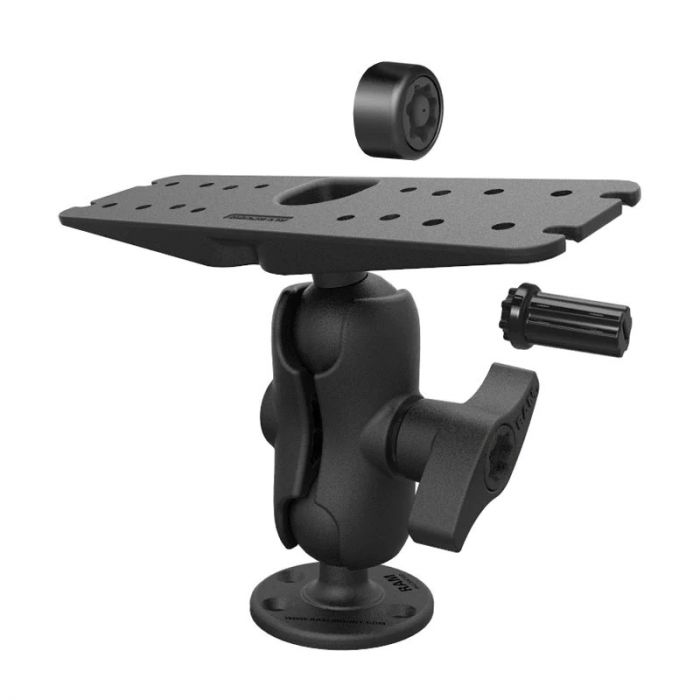

The RAM Pin Lock Marine Electronic Mount with Gimbal Knob - D Size, Short consists of a 3.68" diameter round base, SHORT LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.
Features
- Consists of a 3.68" diameter round base
- Short length double socket arm
- 11" x 3" rectangular base
- Ram mixed combination pin-lock security nut/knob and key knob
Specifications
| Hardware Included | (2) Ram Pin-Lock Security Keys/(4) .312" X .187" Shoulder Washers |
| Product Dimensions | |
| Overall Length | 8.125" |
| Socket To Socket Length | 3.6" |
| Plate Size | |
| Top Plate | 3" X 11" |
| Bottom Plate | 3.68" Diameter |
| Ball Size | D Size (2.25") |
| Weight Capacity | |
| Standard Use | 6 Lbs |
| Heavy-Duty Use | 5 Lbs |
| Materials | Marine-Grade Aluminum |
| Free Shipping | No |
|---|
