RAM Strap Hose Clamp Mount With 1/4"-20 Camera Adapter - Medium
R1,629.00
SKU
RAM-B-108U-BIT1
Medium length b-size arm
2.5" diameter round plate
Universal amps hole pattern
Description

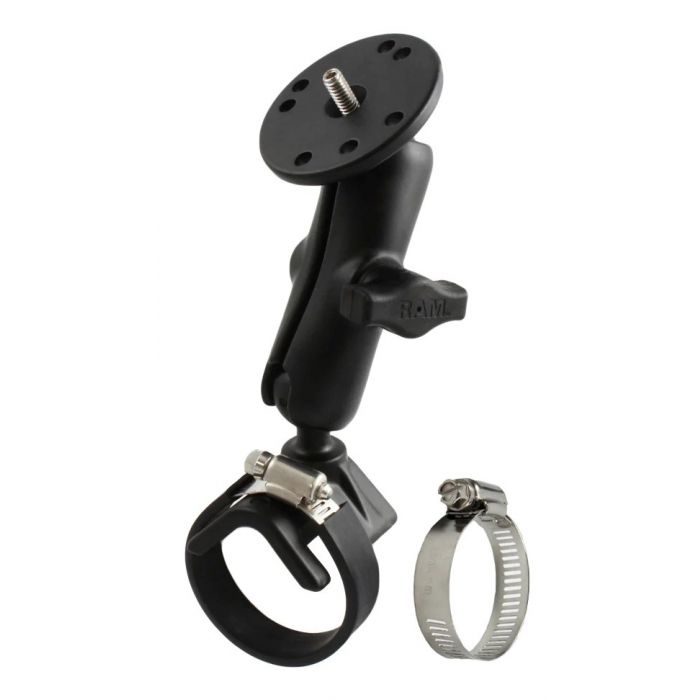

The RAM Strap Hose Clamp Mount With 1/4"-20 Camera Adapter - Medium consists of a medium length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern with a removeable 1/4"-20 threaded post on one side and a strap clamp base for rails from 1" to 2.1" in diameter on the other.
Features
- Medium length b-size arm
- 2.5" diameter round plate
- Universal amps hole pattern
- Removeable 1/4"-20 threaded post
- Strap clamp base
- For rails from 1" to 2.1" in diameter
Specifications
| Clamp Range | 1" - 2.1" Diameter |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Thread Pitch | 1/4"-20 X .25" |
| Plate Size | 2.5" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (1) 20 worm drive strap clamp
- (1) 28 worm drive strap clamp
- (1) 6" rubber strip
