RAM Strap Hose Clamp Mount With Hardware For Garmin GPSMAP
R1,749.00
SKU
RAM-B-108-G1
1" dia. ball and socket system
Universal mounting solution
For both RAM and non-RAM designed products
Description

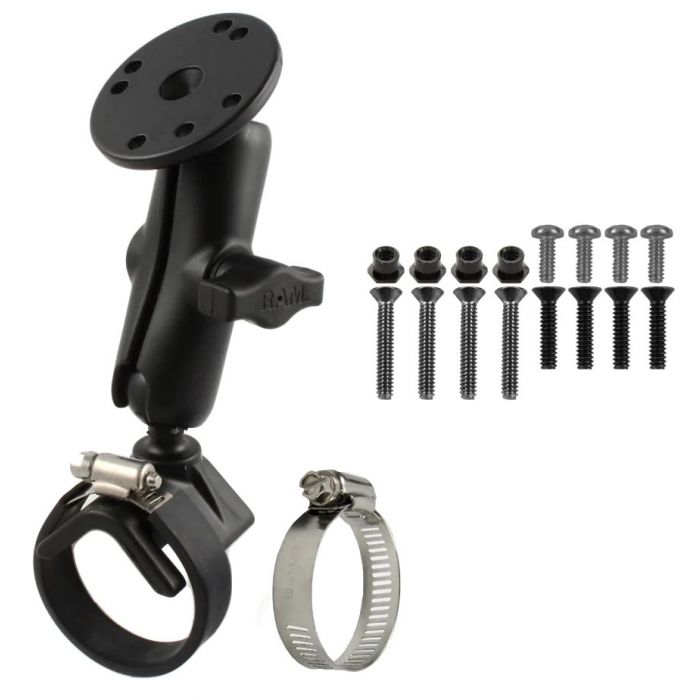

The RAM Strap Hose Clamp Mount With Hardware For Garmin GPSMAP consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0" to a maximum of 1.9". The 1" rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0" and one 8.0" long metal strap is included with this base along with a 5.5" long (approximate) strip of rubber to avoid any scratching or marking of your rail.
Features
- 1" dia. ball and socket system
- Universal mounting solution
- For both RAM and non-RAM designed products
- Durable and reliable
Specifications
| Clamp Range | 1" - 2.1" Diameter |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (4) 6-32 x 5/8" machine screws
- (4) 6-32 x 7/8" machine screws
- (4) 6-32 x 3/8" machine screws
- (4) 6-32 nut inserts
- (1) 20 worm drive strap clamp
- (1) 28 worm drive strap clamp
- (1) 6" rubber strip
| Free Shipping | No |
|---|
