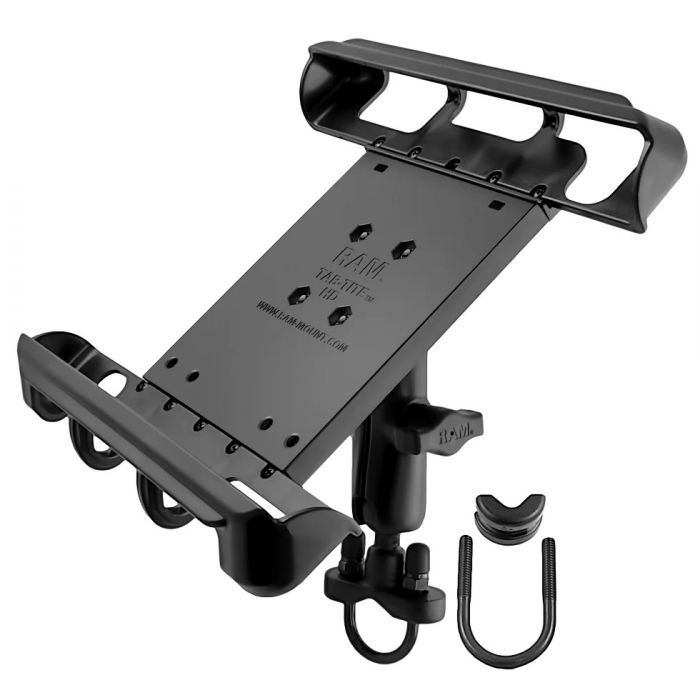

RAM Tab Tite Handlebar U Bolt Mount For Large Tablets With Cases

Description

The RAM Tab Tite Handlebar U Bolt Mount For Large Tablets With Cases consists of a zinc coated u-bolt base, standard length double socket arm, round base adapter and Tab-Tite universal clamping cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

• Consists of a zinc coated u-bolt base
• Standard length double socket arm
• Round base adapter
• Tab-Tite universal clamping cradle
• Accommodate rails from 0.50" to 1.25

Specifications

Hardware Included

• Assembly hardware
• (1) 1/4"-20 u-bolt for .5" - 1" rails
• (1) 1/4"-20 u-bolt for 1" - 1.25" rails
• (2) 1/4"-20 nylock nuts
• (2) rubber caps
• (1) u-bolt spacer
