Ram Tough-Dock Vehicle Bundle - Samsung Tab A7 Lite 8.7 Inch
R10,779.00
SKU
RAM-GDS-101B2-SAM80CP-V7B1U
Low-profile double ball mount
C size (1.5" / 3.81cm) ball
Two cable clamps
Description

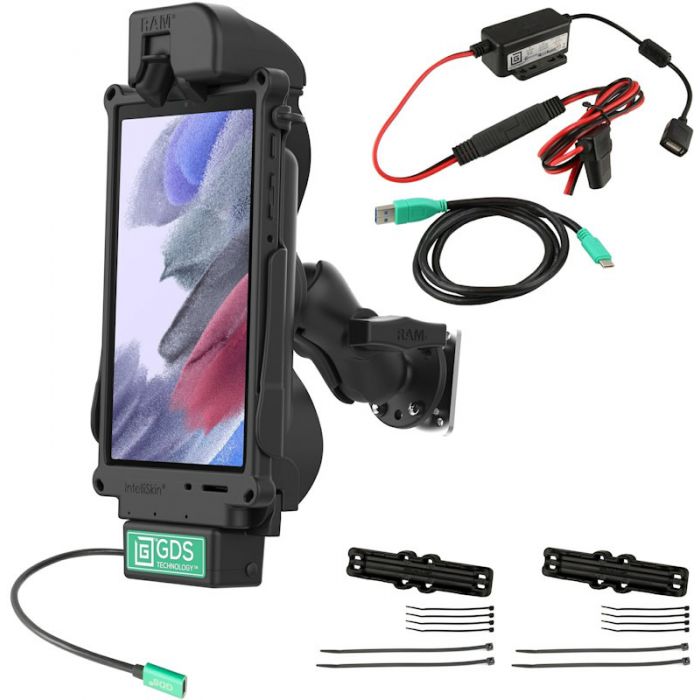

Introducing the Ram Tough-Dock Vehicle Bundle - Samsung Tab A7 Lite 8.7 Inch. The Ram Tough-Dock Vehicle Bundle designed for the Samsung Tab A7 Lite 8.7" (SM-T220 & SM-T225) provides a comprehensive and ELD-compliant solution for transportation and large fleet vehicles. The bundle includes essential components to enhance functionality and compatibility with the tablet.
The GDS Tough-Dock serves as the central docking station, featuring GDS Technology for charging capabilities. It ensures secure and efficient charging for the Samsung Tab A7 Lite. The dock is complemented by the IntelliSkin Next Gen for Samsung Galaxy Tab A7 Lite, providing added protection and compatibility with the tablet.
The hard-wire charger with a USB Type-A connector ensures reliable power delivery to the dock, supporting the charging needs of the tablet in a vehicle environment. The Power Delivery feature enhances charging efficiency.
For versatile mounting options, the bundle includes a low-profile double ball mount with a C size (1.5" / 3.81cm) ball. This mount facilitates secure attachment and positioning of the tablet within the vehicle.
The backing plate adapter and two cable clamps contribute to the overall stability and organization of the system, ensuring a neat and secure installation.
Certified for compliance with various standards, including FCC, IC, CE, RCM, WEEE, and RoHS, this bundle meets industry requirements. The USB Power Delivery 2.0 and 3.0 support further enhances its compatibility.
Features
- GDS tough-dock
- Hard-wire charger with USB type a
- Low-profile double ball mount
- C size (1.5" / 3.81cm) ball
- Backing plate adapter
- Two cable clamps
Specifications
| Socket To Socket Length | 2.5" / 6.35Cm |
| Hole Pattern | |
| 4-Hole Amps | 1.181" / 3.00Cm X 1.496" / 3.80Cm |
| 3-Hole 120-Degree | 1.812" / 4.60Cm Diameter |
| Ball Size | C Size (1.5" / 3.81Cm) |
| Materials | Steel |
| Marine-Grade Aluminium | |
| High Strength Composite | |
| Output Voltage | 5-9Vdc |
| Input Connector | Female USB Type-C |
| Input Cable Length | 1.2 Meters Including 2 Pole Flat Marine Connector |
| Output Cable Length | 150Mm |
| Operating Temperature | -20C to +70C |
| Storage Temperature | -40C to +85C |
| Compliance | Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Overvoltage Protection (OVP) |
| Certifications | FCC, IC, CE RCM, WEEE, RoHS Compliant |
| USB Power Delivery 2.0 and 3.0 Support | |
| Weight | 3.43 lb / 1.556kg |
| Additional Information | 5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0. |
| Samsung | Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin Next Gen |
Package Contents
- Assembly hardware
- 1x 2.10" / 5.33cm x 2.60" / 6.60cm steel backing plate
- 4x 8-32 x 1" / 2.54cm screws
- 4x 8 split lock washers
- 4x 8 flat washers
- 2x cable clamps
- 1x USB type-c to USB type-a cable
- 1x vehicle hard-wire charger
