RAM Twist Lock Suction Cup and Composite Yoke Clamp Mount
R1,849.00
SKU
RAP-B-121-224-1U
Consists of a yoke clamp base
3.3" diameter suction cup base
Standard length double socket
Description

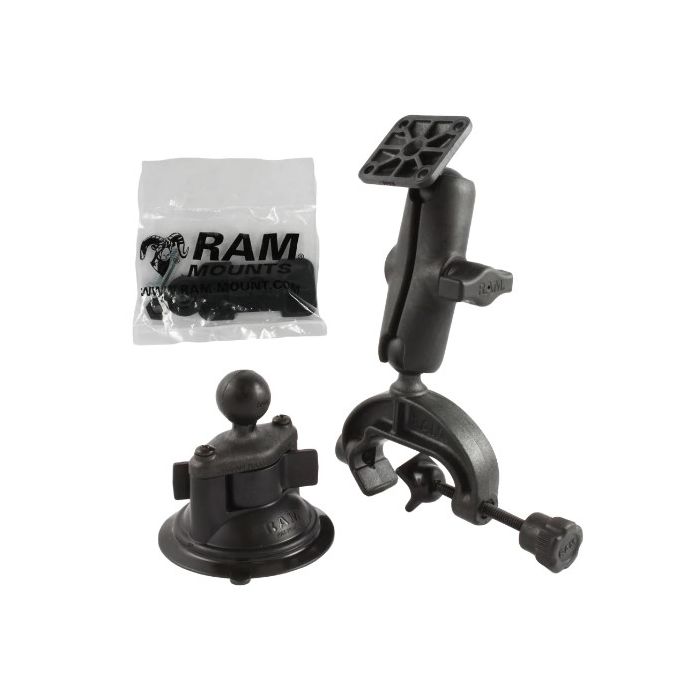

The RAM Twist Lock Suction Cup and Composite Yoke Clamp Mount consists of a yoke clamp base, 3.3" diameter suction cup base, standard length double socket arm and 2" x 1.7" square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.
Features
- Consists of a yoke clamp base
- 3.3" diameter suction cup base
- Standard length double socket
Specifications
| Clamp Range | .625" - 1.25" |
| Suction Size | 3.3" Diameter |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | High Strength Composite |
Hardware Included
- Assembly hardware
- Flat clamp hardware adapter
| Free Shipping | No |
|---|
