RAM Twist Lock Triple Suction Mount with Round Plate and 1/4"-20 Stud
R2,629.00
SKU
RAP-B-365-224-202AU
Consists of a triple 3.3" diameter suction cup twist lock base
Double socket arm
Round base adapter that contains a 1/4"-20 male camera thread
Description

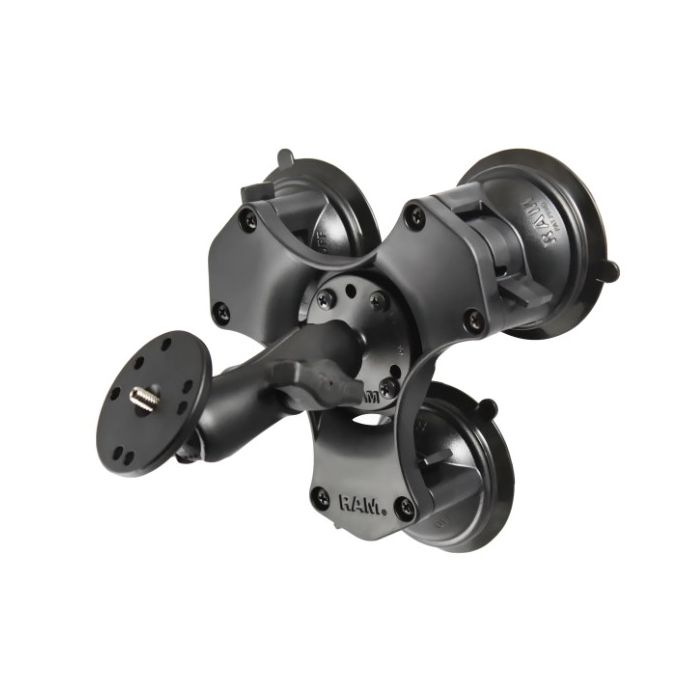

The RAM Twist Lock Triple Suction Mount with Round Plate and 1/4"-20 Stud consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
Features
- Consists of a triple 3.3" diameter suction cup twist lock base
- Double socket arm
- Round base adapter that contains a 1/4"-20 male camera thread
Specifications
| Hardware Included | Assembly Hardware |
| Suction Size | (3) 3.3" Diameter Bases, Total Width 7.95" |
| Socket To Socket Length | 3" |
| Hole Pattern | |
| 4-Hole Amps | 1.181" X 1.496" |
| 3-Hole 120-Degree | 1.812" Diameter |
| Thread Pitch | 1/4"-20 X .25" |
| Plate Size | 2.5" Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum/High Strength Composite |
| Free Shipping | No |
|---|
