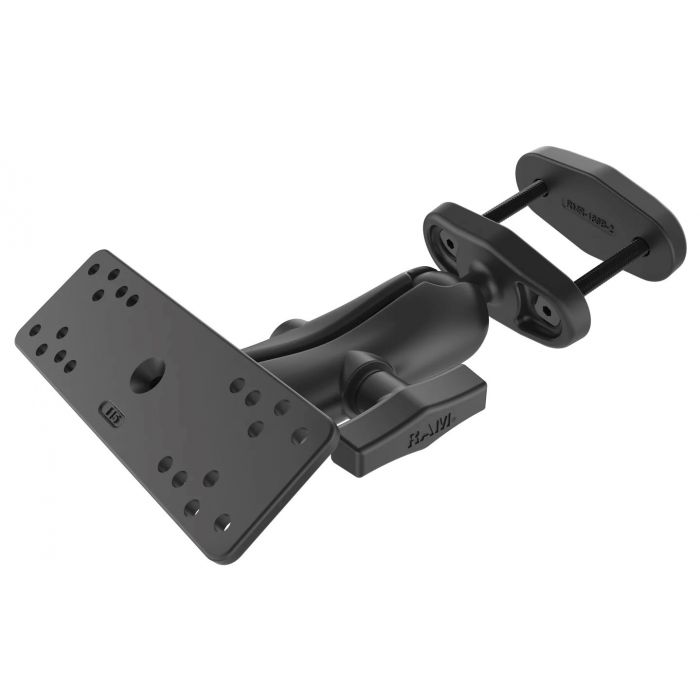

RAM Universal Marine Electronic Mount For Square Posts
R2,479.00
SKU
RAM-111-247U-2
Consists of the 1.5 inch diameter
Ball and socket system
With ram universal rectangular 6.25 x 2 inch base
Description
The RAM Universal Marine Electronic Mount For Square Posts with clamp base, consists of the 1.5 inch diameter ball and socket system with RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular base will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a forklift, or any other square post up to 2 inches square.
Features
- Consists of the 1.5 inch diameter
- Ball and socket system
- With ram universal rectangular 6.25 x 2 inch base
- Universal mounting solution
Specifications
| Brand | RAM |
| Hardware Included | (2) 5/16"-18 X 3" Machine Screws, (2) 5/16"-18 Nylock Nuts |
| Clamp Range | 2" Max Width |
| Socket To Socket Length | 4.66" |
| Plate Size | 6.25" X 2" |
| Ball Size | C Size (1.5") |
| Weight Capacity | |
| Standard Use | 4 Lbs |
| Heavy-Duty Use | 3 Lbs |
| Materials | Marine-Grade Aluminum |
Additional Information
- The included plate is a universal mounting bracket with a selection of mounting hole locations. in certain applications additional holes may need to be drilled for proper fit with your electronic device.
| Free Shipping | No |
|---|
