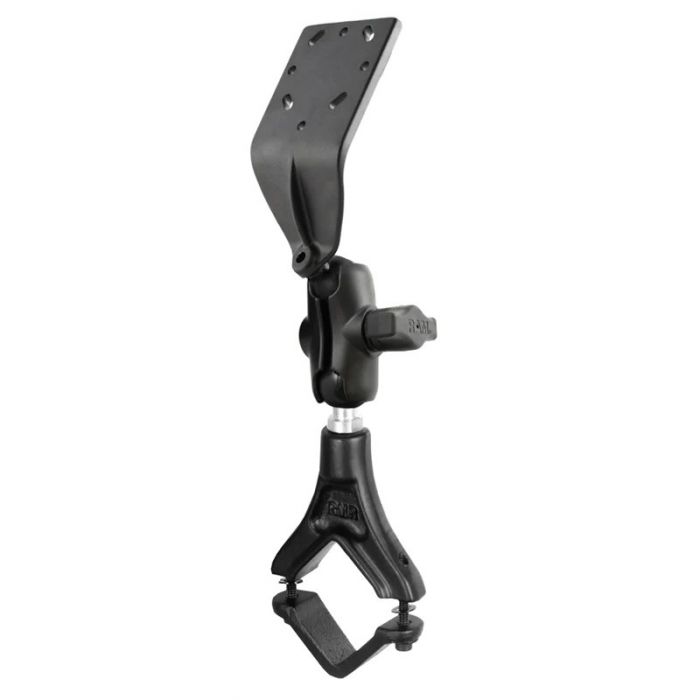

RAM Yoke Clamp Mount With Curved Plate For Pilatus
R3,069.00
SKU
RAM-B-380-A-125BU
Consists of a yoke clamp base
SHORT double socket arm
Curved angle plate
Description
The RAM Yoke Clamp Mount With Curved Plate For Pilatus consists of a yoke clamp base, SHORT double socket arm and curved angle plate. The yoke clamp base is designed with the Pilatus PC-12NG in mind however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25" 1.625". The curved angle plate is 2.5" square with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5" above the 1" ball (to the bottom of the connection section of the plate).
Features
- Consists of a yoke clamp base
- SHORT double socket arm
- Curved angle plate
- Accommodate an outer diameter range of 1.25" 1.625"
- Curved angle plate is 2.5" square with pre-drilled holes
Specifications
| Clamp Range | 1.4" - 1.625" |
| Socket To Socket Length | 1.75" |
| Hole Pattern | Various Amps Hole Patterns |
| Ball Size | B Size (1") |
| Weight Capacity | |
| Standard Use | 2 Lbs |
| Heavy-Duty Use | 1 Lb |
| Materials | Marine-Grade Aluminum |
Hardware Included
- (2) 10-24 x 1" socket head cap screws
- (2) 10 stainless steel washers
- (2) 10 screw retaining rings
- (1) 2" x 7.5" rubber adhesive strip
