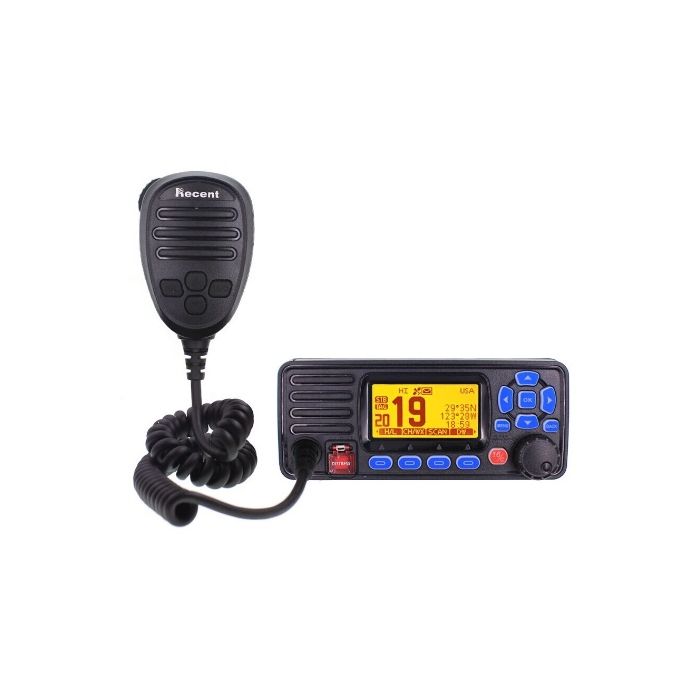

Recent 509MG Marine VHF Radio With DSC & GPS
R5,379.00
SKU
RECENT 509MG


Description
The Recent 509MG Marine VHF Radio With DSC & GPS has a built-in GNSS module, support GPS, GLONAS and SBAS satellite-based augmentation system (WAAS/EGNOS/MSAS/GAGAN). Standard NMEA interface (RS-422 protocol). DSC distress calls in 11 categories, all DSC calls in 3 security categories. Dual receiver, independent DSC dedicated receiver. Manually input GPS latitude and longitude and time. DSC call reception and transmission records can be queried. Channel number display digits selectable: 3 digits(01B)/ 4 digits(2001). Support latest marine channel standards and DSC protocol standards.
Features
- 25 watts of power
- Small size for easy installation
- GPS antenna included
- DSC distress calls
- ICASA approved
- Full dot matrix display
- Standard nmea interface
- Speaker vibration draining function
- Ipx7 waterproof rating
- Scan: normal scan and priority scan
- Dual/tri-watch functions
- Weather channel alarm
- A simple combination of arrow keys
- Programmable soft keys for smooth operation
Specifications
| Frequency | TX: 156.000-162.000MHz, RX: 156.000-163.425MHz |
| Rf Power | 25W/1W |
| Modulation Mode | 16K0G3E(FM), 16K0G2B(DSC) |
| Frequency Stability | +-5ppm |
| Power Supply | DC13.8V (+-15%) |
| Channel Spacing | 25kHz |
| Antenna Impedance | 50 |
| Output Impedance (Audio) | 4 |
| Dimensions (Wxhxd) | 155x68x86mm |
| Weight | 721g |
| Nmea Formats (In) | RMC, GGA, GNS, GLL, VTG |
| Nmea Formats (Out) | DSC, DSE, RMC, GSA, GSV |
| Free Shipping | No |
|---|
