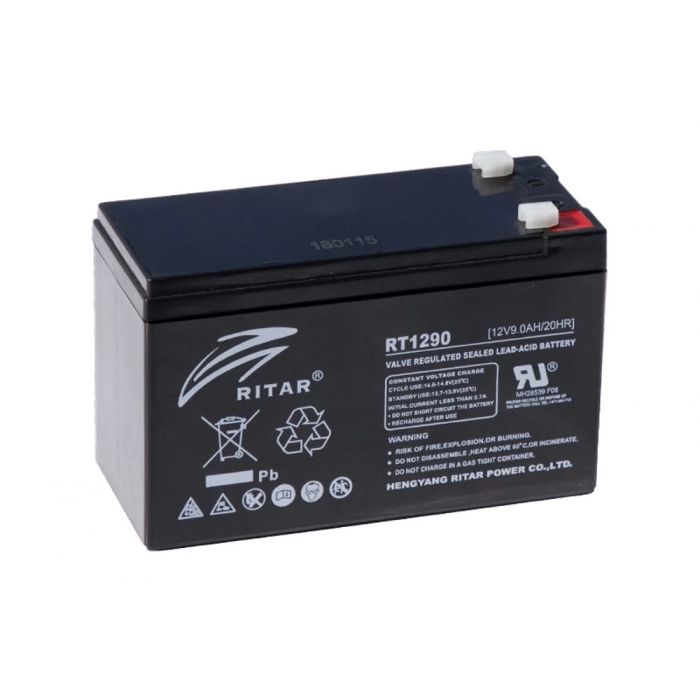

Ritar RT1290 General Purpose Battery - 12V, 9A/H
R689.00
SKU
RT1290
Description
The Ritar RT1290 General Purpose Battery - 12V, 9A/H has been designed to be a general purpose battery with a design life of 6 to 8 years. The battery itself meets with IEC, JIS, BS, GB/T and YD/T standards. The battery itself maintains high consistency for better performance and reliable standby service life and is suitable for UPS/EPS, medical equipment, emergency lights, and security system applications.
Features
- Lightweight design
- General purpose
- Reliable standby service life
- Suitable for UPS/EPS
- Durable material
Specifications
| Cells Per Unit | 6 | |
| Voltage Per Unit | 12V | |
| Nominal Capacity | 9Ah@20hour-rate to 1.75V per cell @25 Degrees Celsius | |
| Weight | Approx 2.30kg (Tolerance+/-5.0%) | |
| Internal Resistance/Approx 22m | ||
| Terminal | F1/F2 | |
| Max. Discharge Current | 90A (5 sec) | |
| Shot Circuit Current | 450A | |
| Design Life | 6 to 8 years (Float Charging) | |
| Max Charging Current | 2.7A | |
| Reference Capacity | ||
| C3 | 6.96AH | |
| C20 | 9.00AH | |
| C5 | 7.85AH | |
| C10 | 8.41AH | |
| Standby Use Voltage | 13.7 V13.9 V @ 25, Temperature Compensation: -3mV Cell | |
| Cycle Use Voltage | 14.6 V14.8 V @ 25, Temperature Compensation: -4mV Cell | |
| Operating Temperature Range | ||
| Discharge | -20 Degrees Celsius to 60 Degrees Celsius | |
| Charge | 0 Degrees Celsius to 50 Degree Celsius | |
| Storage | -20 Degree Celsius to 60 Degree Celsius | |
| Normal Operating Temperature Range | 25 Degree Celsius +/- 5 Degree Celsius | |
| Container Material | A.B.S UL94-HB, UL94-V0 Optional |
| Free Shipping | No |
|---|
