Three wireless beltpack lavalier transmitters
Single lightweight dual-channel camera-mountable receiver
Carrying case included

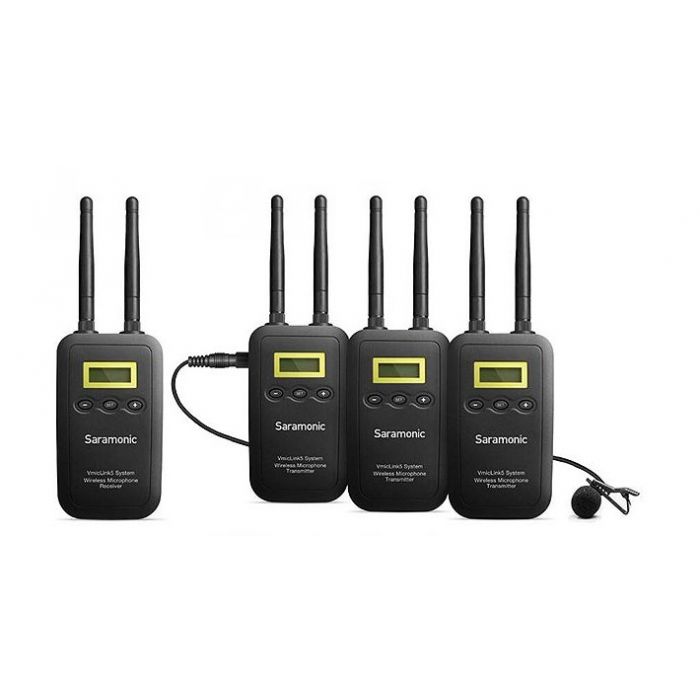

The Saramonic VmicLink5 RX+TX+TX+TX Three-Channel Wireless Lavalier System - 5.8GHz is a portable, three-channel, camera-mountable wireless system that enables you to use clip-on lavalier mics on three separate people while only requiring you to attach a single compact receiver to your camera. This system is perfect for DSLR, video cameras or portable audio recorders for capturing two-person interviews, event videography, film dialogue, field recording, broadcast TV and news gathering.
The need often arises in video production to run more than two wireless microphones, but its always been difficult to do. It required mounting multiple wireless receivers to the camera, using a mixer of some kind, and juggling frequencies so the systems dont interfere. Those days are over because the VmicLink5 RX+TX+TX+TX makes this process incredibly easy all while offering broadcast-quality sound in a low-cost package.
The system works flawlessly right out of the box. Just plug in the mics, turn on the power and go. If it detects potential interference, it automatically switches the frequencies for you. All of these features not only make the VmicLink5 simple to use but create the easiest possible workflow.
The VmicLink5 utilizes the 5.8GHz frequency range, which is much higher and much less congested than 2.4GHz, UHF, and VHF. No other commercially available wireless systems work in the 5.8GHz range. Each unit gets 6 hours of power from included lithium-ion rechargeable batteries, so you wont be wasting money on disposable batteries.
The VmicLink5 features a single, lightweight RX receiver that mounts to your camera and handles the audio from all three of the included transmitters. The receiver operates in Stereo or Mono output modes: Stereo mode mixes transmitter group A and C on the left channel, and transmitter B on the right channel. Mono mode mixes transmitters A, B and C into both left and right channels. The receiver also features individual level controls for each transmitter and a headphone output enables real-time audio monitoring if your camera lacks a headphone output. Locking 1/8 (3.5mm) mini-plug and XLR output cables are both included so you can use the VmicLink5 with DSLRs, mirrorless, cinema, camcorders, recorders and professional video cameras.
The VmicLink5 includes three TX transmitters and three SR-M1 omnidirectional lavalier microphones. The transmitters feature a locking 1/8 (3.5mm) microphone input and a dedicated line input that makes wirelessly capturing audio from an external source a snap. The TX transmitter also features a combination Power/Mute button which can be 'locked' when in use to prevent accidental muting or powering off. A custom moulded carry case is also included, providing an easy way to transport the VmicLink5 or to provide even more protection when in a bag. Additionally, optional output cables (sold separately) are available, giving you unrivalled connectivity. They make it possible to connect the receiver to smartphones, tablets, computers, GoPro cameras and more.
Channel Number | 3 |
RF Power | 15dBm(30mW) |
RF Frequency Range | 5725MHz - 5875MHz |
Receiver Sensitivity | 198dB |
Frequency Response | 40Hz-18KHz/ +/-1 dB |
THD+N | 92dB |
Sample Rate | 48K/16bit |
Frequency Response | 40Hz-18KHz/ +/-1 dB |
Voice delay | 18ms |
Transmitter Mic in | Max 160mV/-13dBu, 1.8V phantom power |
Transmitter Line in | Max 2V/8dBu, 50V DC isolation |
Receiver Phone Out | Max 70mW/32Ohm, 10V DC isolation |
Receiver Line Out | 4 times mic in gain, 50V DC isolation |
Power consumption RX | 180mA/6V |
Power consumption TX | 140mA/6V |
Antenna gain | 3dBi |
Batteries | 7.2V/1000mAh Li-ion (6.5 hours average) |
Battery type | LP-E17(CANON EOS M3/750D/760D) |
Dimensions RX and TX | 113 x 64 x 28mm each |
Weight RX and TX | 169g each (battery included) |
