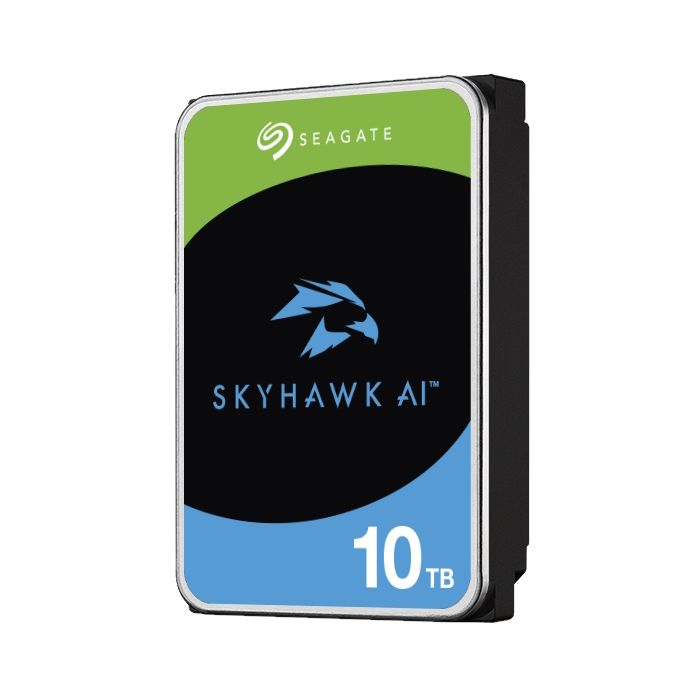

Seagate Skyhawk AI Surveillance-Specialized Storage HDD - 10TB
R7,749.00
SKU
ST10000VE000
10TB of capacity
256MB cache
ImagePerfect AI firmware
Actively helps protect your surveillance storage
Description
Introducing the Seagate Skyhawk AI Surveillance-Specialized Storage HDD - 10TB. Crafted for high-performance video analytics and imaging applications, enabling seamless integration with AI Network Video Recorders (NVRs), servers, and appliances equipped with AI analytics and deep learning capabilities. With a substantial 10TB capacity and an advanced ImagePerfect AI firmware, this hard drive guarantees zero dropped frames, effectively supporting demanding workloads. The Skyhawk AI HDD excels with its ability to manage up to 64 HD video streams and 32 AI streams, making it exceptionally suitable for organisations that require robust surveillance solutions detailed enough for real-time analysis.
Reliability is a cornerstone of the Skyhawk AI design, with an impressive 2.5 million hours MTBF and a 550 TB/year workload rate, which emphasises its capacity for handling more than three times the workload of standard surveillance HDDs. The drive features a generous 256MB cache, enhancing data processing speeds and ensuring smooth operation even under heavy demand. Furthermore, the SkyHawk Health Management system actively safeguards storage through prevention, intervention, and recovery options, including the innovative RAID RapidRebuild, which provides three times faster volume rebuilds compared to traditional RAID systems. This makes the Skyhawk AI not just about capturing footage, but also about maintaining the integrity and availability of the data over extended periods.
In addition to its operational capabilities, the Skyhawk AI HDD is designed with environmental adaptability in mind. It functions optimally in operating temperatures ranging from 0C to 65C, and it endures harsh conditions with a non-operating temperature tolerance from -40C to 70C. The drive's robust build also allows for significant operational shock resistance, with a maximum rating of 70 Gs for read operations and 40 Gs for write operations. For users, its compact design (weighing 720g) and provisions for hotplug operation, along with a user-friendly warranty verification process, affirm that the Seagate Skyhawk AI HDD is a dependable and versatile choice for modern surveillance systems that require intelligent data handling and reliability.
Features
- 10TB of capacity
- 256MB cache
- ImagePerfect AI firmware
- Actively helps protect your surveillance storage
- Supporting up to 64 HD video streams and 32 AI streams
- Enterprise-class, with 2.5m hours MTBF and a 550 TB/year workload rate
Specifications
| Brand | Seagate Skyhawk |
| Capacity | 10TB |
| Heads | 10 |
| Discs | 5 |
| Bytes Per Logical Sector | 512 |
| Bytes Per Physical Sector | 4096 |
| Recording Density, Kbpi (Kb/In Max) | 2499 |
| Track Density, Ktpi (Ktracks/In, 0 Skew) | 487 |
| Areal Density, (Gb/In2, At 0 Skew Mid-Disk) | 1215 |
| Spindle Speed (Rpm) | 7200 |
| Internal Data Transfer Rate (Mb/S Max) | 2169 |
| Sustained Data Transfer Rate Od (Mib/S Max) | 234 (245MB/s max) |
| I/O Data-Transfer Rate (Mb/S Max) | 600 |
| Ata Data-Transfer Modes Supported | PIO modes 0-4 |
| Multiword DMA modes 0-2 | |
| Ultra DMA modes 0-6 | |
| Cache Buffer | 256MB (262,144KB) |
| Weight: (Maximum) | 720g (1.587 lb) |
| Average Latency | 4.16ms |
| Power-On To Ready (Sec) (Typ/Max) | 23/30 |
| Standby To Ready (Sec) (Typ/Max) | 23/30 |
| Startup Current | |
| Typical | 12V |
| Peak | 2.0A |
| Voltage Tolerance (Including Noise) | 5V -/+5% |
| 12V -/+10% | |
| Operating Ambient Temperature (Min C) | 0C (Ambient) |
| Operating Temperature (Max C) | 65C (Drive Reported Temperature) |
| Non-Operating Temperature | -40 to 70C (Ambient Temperature, see sections 2.6.1 and 2.10) |
| Temperature Gradient (C Per Hour Max) | 20C (operating) |
| 20C (nonoperating) | |
| Relative Humidity | 5% to 95% (operating) |
| 5% to 95% (nonoperating) | |
| Relative Humidity Gradient | 20% per hour max |
| Altitude, Operating | -304.8 m to 3,048 m (-1000 ft to 10,000+ ft) |
| Altitude, Nonoperating (Below Mean Sea Level, Max) | -304.8 m to 12,192 m (-1000 ft to 40,000+ ft) |
| Operational Shock (Max At 2 Ms - Typical) | Read 70 Gs / Write 40 Gs |
| Non-Operational Shock (Max At 2 Ms - Typical) | 300 Gs |
| Linear Random Operating Vibration | 10-500 Hz: 1.04Grms |
| Random Rotary Operating Vibration | 20-1500Hz: 12.5 rads/s2 |
| Linear Random Non-Operating Vibration | 10-500 Hz: 2.0 Grms ref |
| Drive Acoustics, Sound Power (Bels) | |
| Idle | 2.8 (typical) |
| 3.0 (max) | |
| During periods of drive idle, some offline activity may occur according to the SMART specification, which may increase acoustic and power to operational levels. | |
| Performance Seek | 3.2 (typical) |
| 3.4 (max) | |
| Nonrecoverable Read Errors | 1 sector per 1015 bits read |
| Annualized Failure Rate (Afr) | 0.44% based on 8760 POH |
| Maximum Rated Workload | Maximum rate of <550TB/year |
| Workloads exceeding the annualised rate may degrade the drive MTBF and impact product reliability. The Annualised Workload Rate is in units of TB per year, or TB per 8760 power on hours. Workload Rate TB transferred (8760 / recorded power on hours) | |
| Load-Unload Cycles (Command Controlled) | 300,000 |
| Supports Hotplug Operation Per Serial Ata Revision 3.3 Specification | Yes |
| Warranty | To determine the warranty for a specific drive, use a web browser to access the following web page: www.seagate.com/support/warranty-and-replacements/. From This Page, Click On The Is My Drive Under Warranty Link. The Following Are Required To Be Provided: The Drive Serial Number, Model Number (Or Part Number) And Country Of Purchase. The System Will Display The Warranty Information For The Drive. |
| Dimensions: H x W x D | 26.11 mm/1.028 in x 101.85 mm/4.01 in x 146.99mm/5.787in |
| Weight | 720 g/1.59 lb |
| Free Shipping | No |
|---|
