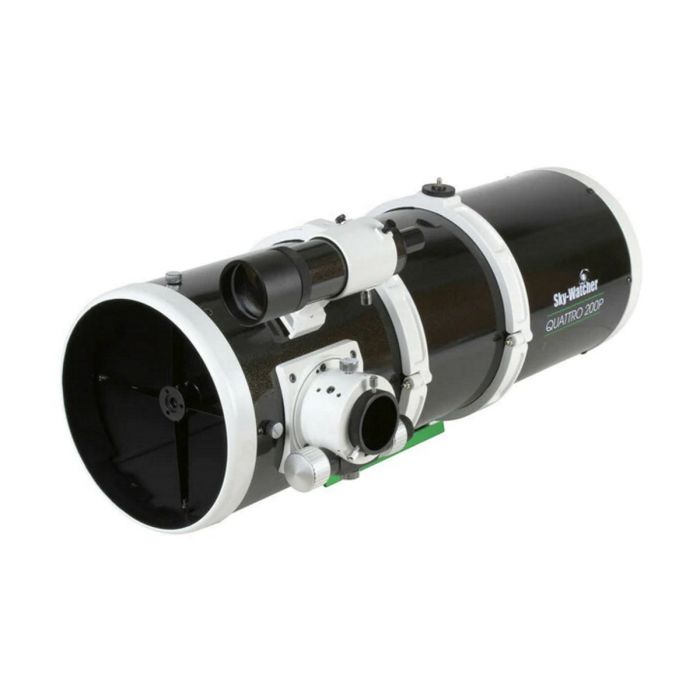

Skywatcher Reflector Quattro Imaging Newtonian - 8", 200P
- 205mm optical diameter
- Focal length of 800mm
- Fast f/4 focal ratio


Description
The Skywatcher Reflector Quattro Imaging Newtonian - 8", 200P is an affordable, large aperture astrograph, ideal for users searching for a fast imaging system that will work for both astrophotography and visual astronomy. Boasting a swift f/4 focal ratio, this astrograph can produce an exposure 6x faster than the average 8-inch f/10 Schmidt Cassegrain telescope. Although designed as an imaging optical tube, these Newtonians also produce bright and detailed viewing for visual astronomy.
Like all Sky-Watcher reflectors, the Quattro imaging Newtonian features borosilicate mirrors coated with Sky-Watchers proprietary Radiant Aluminum Quartz (RAQ), producing 94% reflectivity. The tube is constructed with rolled steel, then coated with Sky-Watchers signature glossy metal-flake Black Diamond finish. The OTA uses an oversized secondary mirror providing greater illumination for DSLRs and CCDs using full-frame sensors, and an optional coma corrector is available for those who want to take their imaging to the next level.
Included with the Quattro Newtonian is a 10:1 dual-speed 2-inch Crayford-style focuser, 1.25 and 2-inch eyepiece adapters, a 9x50 finderscope, tube rings, and a V-style dovetail plate.
Features
- 205mm aperture, 800mm focal length
- Fast f/4 focal ratio
- Parabolic mirror designed for imaging with 94% reflectivity
- 10:1, dual-speed, 2-inch Crayford-style focuser
- Oversized secondary mirror produces greater illumination for full-frame DSLR and CCD cameras
- Tube rings, mounting plate, eyepiece adapters, and 9x50 finderscope included
Specifications
| Optical Info | |
| Optical Design | Newtonian |
| Mirror Coatings | Radiant Aluminum Quartz (RAQ) coatings with 94% reflectivity |
| Glass Type | Borosilicate |
| Primary Aperture | 203mm |
| F/Ratio | 4 |
| Focal Length | 800mm |
| Secondary Diameter | 70mm |
| Secondary Obstruction (by diameter) | 34% |
| Secondary Obstruction by Area | 12% |
| Observational Info | |
| Dawes Limit | 0.57 |
| Rayleigh Limit | 0.69 |
| Limiting Mag. | 14 |
| Minimum Magnification | 29 |
| Maximum Magnification | 400 |
| Light Gathering (compared to next size down) | 78% |
| General Info | |
| Focuser | 2" Dual Speed Crayford |
| OTA Length (Retract/Ext.) | 28" |
| OTA Outer Diameter | 9.375" |
| OTA Weight (with accessories) | 21 |
