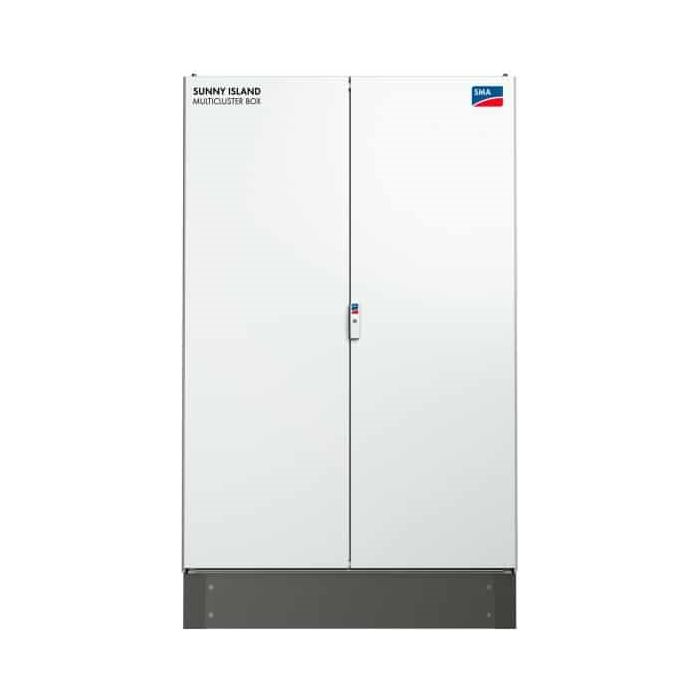

SMA 3-Phase Multicluster Box - 12.3
R198,039.00
SKU
3600100206
Integrated AC distribution for Sunny Island, generator, PV
Integrated load-shedding contactor
Automatic bypass for the PV generator
Shipped in 4 Working Weeks
Description
The SMA 3-Phase Multicluster Box is the main AC distribuiton board in the multicluster system and a component of SMA multicluster technology. It connects the Sunny Island cluster and the power generators within a stand-alone grid.
Features
- Integrated AC distribution for Sunny Island, generator, PV
- Integrated load-shedding contactor
- Automatic bypass for the PV generator
- Active Anti-Islanding
- Reverse current monitoring
- High protection class IP54
Specifications
| Load Connection | |
| Rated voltage | 230 V(LN), 400 V(L1, L2) |
| AC Voltage | 172.5 V - 265 V |
| Frequency range | 40 Hz - 70 Hz |
| Rated power | 110 kW |
| AC current | 3 x 160 A |
| Fuses | LV/HRC size 00 |
| Connections for Sunny Island | |
| Max. no of devices | 12 |
| AC rated power | 72 kW / 3 x 104 A |
| Fuses | Miniature circuit-breaker C32 A |
| Generator connection | |
| Number of connection | 1 (3-phase) |
| Grid input power | 110 kW |
| AC input current | 3 x 160 A |
| Fuses | NH00 |
| General Specifications | |
| Number of phases | 3 |
| Permitted grounding system | TN |
| Dimensions | 1000 x 1400 x 300 mm (W x H x D) |
| Mounting type | Stands on a base |
| Weight | 140 kg |
| Degree of protection | IP54 |
| Free Shipping | No |
|---|
