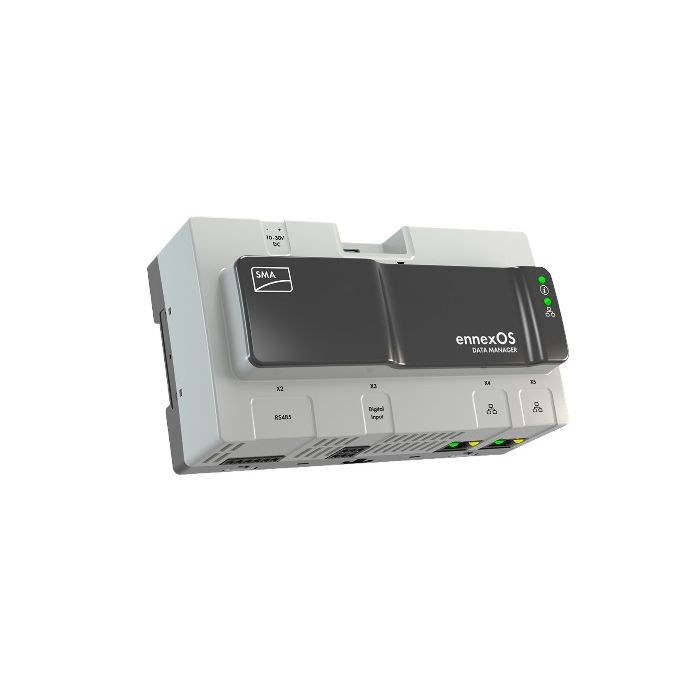

SMA Data Manager M
R21,149.00
SKU
3400101003
Professional system interface for energy supplier, direct marketer, service technician and plant operator
For monitoring and control
From up to 25 SMA inverter
Easy overview of entire portfolio
Manufacturer's Website
Description
In combination with the Sunny Portal powered by ennexOS, the SMA Data Manager M enables monitoring, management and grid compliant power control in decentralized PV systems. Thanks to flexible expansion options, the Data Manager M is already well-equipped for business models in the energy market of the future. Whether as a cost-effective Lite variant for smaller systems with up to five devices and 30 kVA, or as an expanded solution for up to 50 devices and 2.5 MVA - the Data Manager is the ideal professional system interface for electric utility companies, direct sellers, service technicians and PV system operators.
Features
- For monitoring and control
- From up to 25 sma inverter
- Professional system interface for energy supplier, direct marketer, service technician and plant operator
- Standardized user interface
- Seamless remote parameterization
- Easy overview of entire portfolio
- Quick and direct online identification and troubleshooting
- Easy structuring of PV systems according to individual needs
Specifications
| Supported devices Max. | 50 devices: Inverters, I/O systems & meters, Ethernet, 100 Mbit/s |
| Voltage supply | 2-pin connection, MINI COMBICON |
| Network (LAN) | 2 x RJ45, switched, 10BaseT/100BaseT |
| USB | 1x USB 2.0, type A |
| Voltage supply | External power supply unit (available as an accessory) |
| Input voltage | 10V to 30V |
| Power consumption Typically | 4W |
| Environment | Restricted class 3K7 reg. IEC60721-3-3 |
| Ambient temperature | 20C to +60C |
| Permissible range for relative humidity (non-condensing) | 5% to 95% |
| Maximum operating altitude above MSL | 0 m to 3,000 m (70 kPa) |
| Degree of protection according to IEC | 60529 IP20 |
| Dimensions (W/H/ D) | 161.1 mm/ 89.7 mm/ 67.2 mm |
| Weight | 220g |
| Mounting location | Indoors |
| Mounting type | Top-hat rail mounting/ wall mounting |
| Status display | LEDs for system and communication status |
