SMA DC Overvoltprotect Type II
R1,999.00
SKU
3400100833
Helps protect either your Sunny Tripower 20000TL or 25000TL inverters against over-voltage and power surges
Description

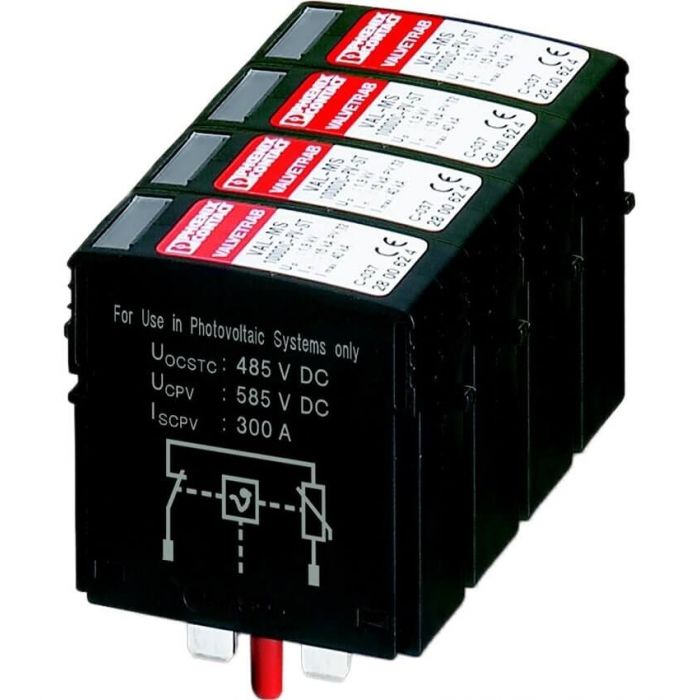

The SMA DC overvoltprotect Type II voltage protection module helps protect either your Sunny Tripower 20000TL or 25000TL inverter against over-voltage and power surges.
Features
- Helps protect either your Sunny Tripower 20000TL or 25000TL inverters against over-voltage and power surges
Specifications
| SPD overload behavior mode | OCM(Open Circuit Mode) |
| Max continous operating voltage | 1170 VDC |
| Open circuit voltage | 970 VDC |
| Short-circuit current rating | 1000 A |
| Continuous operating current | <20 uA |
| Rated load current | 80 A |
| Residual current | <20 uA DC / <250 uA AC |
| Standby power consumption | <25m VA |
| Nominal discharge current | 15 kA |
| Max. discharge current | 40 kA |
| Total discharge current | 40 kA |
| Voltage protection level | <3.7 kV |
| Free Shipping | No |
|---|
