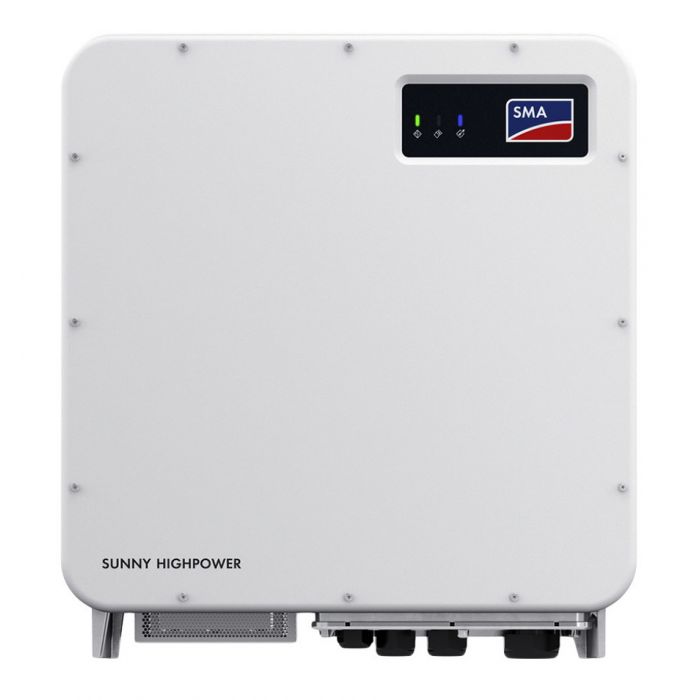

SMA Sunny Highpower 100-20 PEAK3 Inverter - 100kW

Description

At the heart of a PV system is the SMA Sunny Highpower 100-20 PEAK3 Inverter - 100kW from SMA. This compact string inverter offers cost-saving solutions for large-scale PV systems thanks to its high power density. Easy to install and easy to transport, the PEAK3 is the cost-saving solution for industrial solar panel installations.

The Highpower has a decentralized architecture and DC system input voltages of 1000 Volt. The power of the string inverter is 150 kilowatt peak, and it has a high power density, resulting in low costs. The Sunny Highpower PEAK3 is extra economical thanks to a maximum output of 150% thanks to the DC/AC ratio.

Inverter Sunny Highpower PEAK3 (SHP 100-20) has a maximum DC input voltage of up to 1000 Volt. The DC design of this inverter can be combined with a customized Combiner Box. The Sunny Highpower PEAK3's own consumption at night is less than 5 watts. The Sunny Highpower PEAK3 has a number of handy safety features.

These include earth leakage monitoring (suitable for all power types), grid monitoring and a DC immersion protection. In addition, the inverter has an AC short-circuit resistance and monitored overvoltage protection type II on the AC side and DC side. The degree of protection of the inverter is IP65 and is therefore spray-proof and protects against dust.

Features

• Efficient control, convenient monitoring
• Fast installation, easy commissioning
• Maximum safety & reliability
• Quick start-up
• SMA Sunny Highpower Peak3 - a highly efficient inverter
• Flexibly usable combiner boxes
• Over designing up to 150% possible
• Integrated overvoltage protection DC (type 2) and AC (type 2+3)
• The future-proof solution that grows with your requirements
