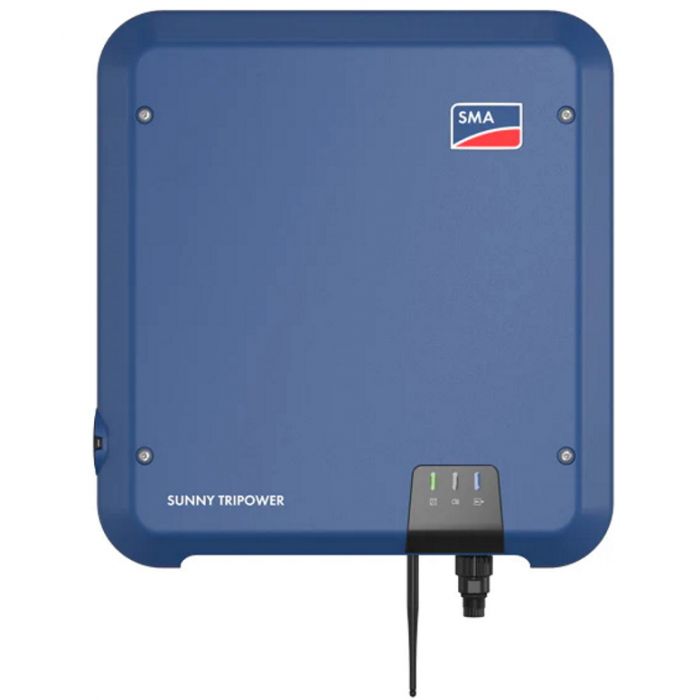

SMA Sunny Tripower 10.0-3AV-40 3 Phase Inverter - 10kW
R60,429.00
SKU
3000100429
One-person installation due to low weight of 17 kg
Compact design means minimum space requirements
100% plug and play installation
Automatic inverter updates
Intelligent energy management
Shipping restrictions apply.
Manufacturer's Website
Description
The SMA Sunny Tripower 10.0-3AV-40 3 Phase Inverter - 10kW makes PV systems in private households and small commercial applications especially powerful. It combines top inverter performance with maximum ease and comfort for its users. With integrated services and shade solutions, it can meet any challenge found on roofs. The Sunny Tripower reliably ensures maximum solar yields and reduces electricity costs.
With its reduced weight, this three-phase Sunny Tripower can be installed quickly while taking up minimal space. The Sunny Tripower can be commissioned quickly via smartphone or tablet thanks to its integrated web interface. Established product features and integrated software solutions will provide yield optimization throughout the systems entire service life. Even in shading.
SMA ShadeFix is a proprietary inverter software that optimizes energy yield in nearly every situation. SMA Smart Connected inverter monitoring offers enhanced safety by detecting errors at an early stage and automatically reporting them to the installer.
Features
- One-person installation due to low weight of 17 kg
- Compact design means minimum space requirements
- 100% plug and play installation
- Automatic inverter updates
- Intelligent energy management and storage solutions can be added anytime
- Can be combined with TS4-R components for module optimization
Specifications
| Max. PV Array Power | 15000 Wp |
| Max. Input Voltage | 1000 V |
| MPP Voltage Range | 320 V to 800 V |
| Rated Input Voltage | 580 V |
| Min. Input Voltage/Initial Input Voltage | 125 V / 150 V |
| Max. Input Current Input A/input B | 20 A / 12 A |
| Max. DC Short-Circuit Current Input A/Input B | 30 A/18 A |
| Number Of Independent MPP Inputs/Strings Per MPP Input | 2 / A:2 B:1 |
| Rated Power (At 230 V, 50 Hz) | 10000 W |
| Max. Apparent AC Power | 10000 VA |
| Nominal AC Voltage | 3 / N / PE 220 V / 380 V |
| AC Voltage Range | 180 V to 280 V |
| AC Grid Frequency/Range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
| Rated Grid Frequency/Rated Grid Voltage | 50 Hz / 230 V |
| Max. Output Current | 3 x 14.5 A |
| Power Factor At Rated Power/Displacement Power Factor Adjustable | 1 / 0.8 overexcited to 0.8 under excited |
| Feed-In Phases/Connection Phases | 3 / 3 |
| Max. Efficiency/European Efficiency | 98.3 %/98.0 % |
| Dimensions (W X H X D) | 460mm X 497mm X 176mm |
| Weight | 20.5 kg |
| Operating Temperature Range | -25 C to +60 C |
| Noise Emission, Typical | 30 dB(A) |
| Self-Consumption (At Night) | 5.0 W |
| Topology/Cooling Method | Transformerless / convection |
| Degree Of Protection (According To IEC 60529) | IP65 |
| Climatic Category (According To IEC 60721-3-4) | 4K4H |
| Max. Permissible Value For Relative Humidity (Non-Condensing) | 100% |
| Free Shipping | No |
|---|
