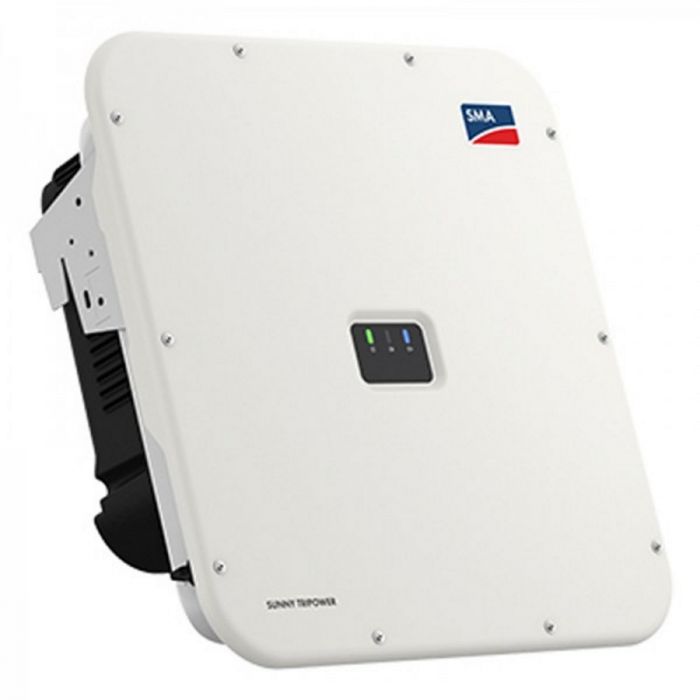

SMA Sunny Tripower X15 Solar Inverter - White
R71,389.00
SKU
3000100457
- Rated input of 570V
- Max DC input voltage of 1000V
- Max efficiency of 98.3%
Description
The SMA Sunny Tripower X15 Solar Inverter - White is the innovative system solution for commercial and large home PV systems. The integrated System Manager function with direct access to Sunny Portal powered by ennexOS monitors up to five SMA inverters and one energy meter. This enables the dynamic closed-loop control of active and reactive power via SMA Dynamic Power Control. Thanks to the wide input voltage range and the high input current capability, it is compatible with the latest generation of high-performance PV modules. The innovative enclosure design ensures efficient cooling of the electronic components and thus guarantees maximum lifetime of the Sunny Tripower X.
Commissioning can be performed quickly and easily as well as centrally for all devices in the system. During operation, users benefit from integrated software solutions: SMA ShadeFix increases PV yields even in the event of partial shading, while SMA ArcFix detects electric arcs effectively and can reliably reduce the risk of fire.
Features
- Max DC PV array power of 22500
- Max DC input voltage of 1000V
- Max efficiency of 98.3%
- <65dB noise emission
- IP65 degree of protection
- Rated input of 570V
Specifications
| Input DC | |
| Max. PV Array Power | 22500 W |
| Max Input Voltage | 1000V |
| MPP Voltage Range | 275 V to 800 V |
| Rated Input | 570V |
| Min. Input Voltage / Initial Input Voltage | 150 V / 188 V |
| Max. Input current Per MPP tracker | 24 A |
| Max. Short-Circuit Current Per MPP tracker | 35 A |
| Number of Independent MPP Trackers / Strings Per MPP Tracker | 3 / 2 |
| Output AC | |
| Rated power (at 230 V, 50 Hz) | 15000W |
| Rated Apparent Power / Max. Apparent Power | 15000 VA / 15000 VA |
| Nominal AC Voltage | 230 V / 400 V |
| Voltage Range | 176 V to 275 V |
| Grid Frequency / Range | 50 Hz / 44 Hz to 56 Hz, 60 Hz / 54 Hz to 66 Hz |
| Rated Grid Frequency / Rated Grid Voltage | 50 Hz / 230 V |
| Rated Output Current / Max. Output Current | 21.7 A / 36.6 A |
| Feed-in phases / AC connection | 3 / 3-(N)-PE |
| Power Factor at Rated Power / Adjustable Displacement Power Factor | 1 / 0.8 overexcited to 0.8 underexcited |
| Harmonic (THD) | < 3 % |
| Max. Efficiency / European Efficiency | 98.3 % / 97.7 % |
| General Data | |
| Dimensions | 728mm x 762mm x 266mm / 28.7" x 30.0" x 10.5" (W x H x D) |
| Weight | 35 kg / 77 lbs |
| Operating Temperature Range | -25C to +60C / -13F to +140F |
| Noise Emission, Maximum (1 m) | < 65 db(A) |
| Self-Consumption (night) | < 5 W |
| Topology / Cooling Concept | No galvanic isolation / OptiCool |
| Degree of Protection (according to IEC 60529) | IP65 |
| Climatic Category (according to IEC 60721-3-4) | 4K26 |
| Max. Permissible Value for Relative Humidity (non-condensing) | 100 % |
