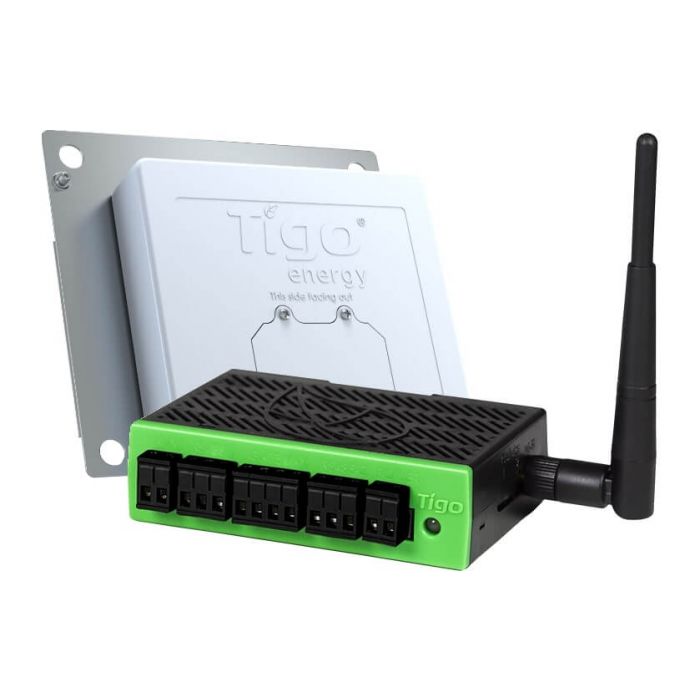

SMA Tigo Cloud Connect Advanced With SMA Tigo Gateway
R6,459.00
SKU
3401800008
Cloud Connect Advanced
Enables module level disconnect
Equipped with Tigo Smart OS
Internet connection via Ethernet or Wi-Fi
Description
SMA Tigo Cloud Connect Advanced
The SMA Tigo Communication Data Logger connects smart modules to the Cloud and the Tigo Smart Monitoring software.
SMA Tigo Gateway
The SMA Tigo Gateway enables wireless communication for upto 120 TS4-R components. It can be inatalled easily on the rear of the module or the substructure and has a range of up to 15 meters.
Features
- Cloud Connect Advanced (CCA) is one of the smallest communication data loggers on the market.
- Connects smart modules to the Cloud and the Tigo Smart Monitoring software.
- Enables module level disconnect, on-site and remote configuration through Tigo's mobile app.
- Comes with RS-485 port software and hardware for robust third party compatibility
- Equipped with Tigo Smart OS, able to support custom applications through extensive APIs.
Cloud Connect Advanced Specifications
| CCA Consumption | |
| Input Voltage | 6 VDC - 25 VDC |
| Input Current | 1.8 A |
| Power Consumption | Typical (with 1 GW): Less than 3 W. Max. 16 W |
| Power supply | |
| Input voltage | 100-240 VAC, 50-60 Hz |
| Form factor options | DIN Rail / Socket |
| Internet Connectivity Options | |
| Ethernet Interface | 10/100-BaseT with Straight-Through or Crossover cable detection. |
| Wireless Interface | Wi-Fi, IEEE 802.11 b/g/n 2.4 gHz |
| Cellular Modem | Verizon LTE |
Gateway Specifications
| Comms with TS4-R | Wireless (802.15) |
| Comms with CCA | RS-485 cable connection |
| Range of wireless Com. | 15 m within line of sight |
| Max. number of TS4-Rs | 120 |
| Dimensions | 200 x 200 x 73 mm (WxHxD) |
| Weight | 900 g |
| Free Shipping | No |
|---|
