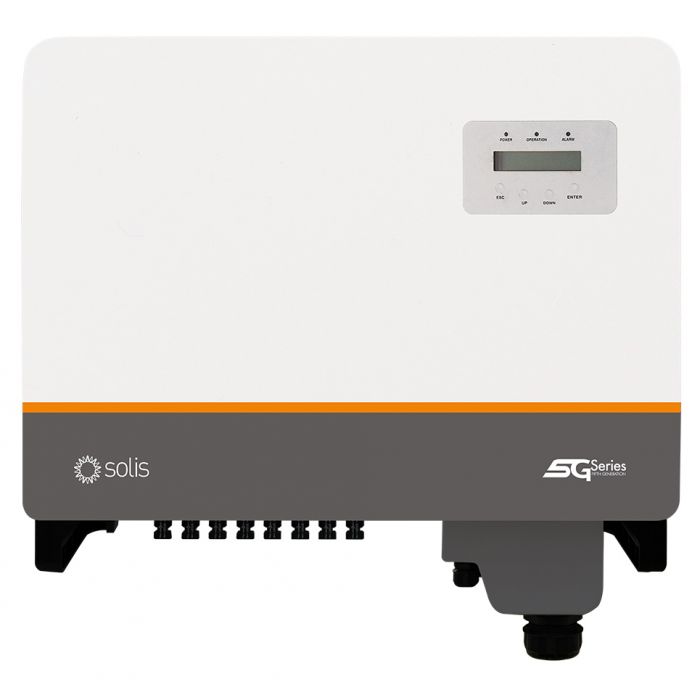

Solis 5G 3 Phase Quad MPPT Inverter - 36kW, DC

R39,389.00
SKU
SOL3603PH5GDC
Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

The Solis 5G 3 Phase Quad MPPT Inverter - 36kW, DC is designed to provide a flexible configuration scheme with a smaller environmental impact rate and a higher generation efficiency. This 5G series creates a more comfortable and friendly working and living environment.



Features

  • Over 98.8% maximum efficiency
  • Natural convection, fan-less design
  • Type II surge arrester for both DC and AC
  • Fuse free design to avoid fire hazard caused
  • 200V-1000V MPPT voltage range-ultra low start-up
  • 12.5A input for each PV string
  • Strings intelligent monitoring, smart I-V curve diagnosis supported (depending on inverter size)
  • 4 MPPT design with precise MPPT algorithm, effectively reducing string mismatch
  • RS485/ RJ45/ Wi-Fi/ GPRS interface integration (optional), remote upgrade supported



Specifications

Recommended Max. PV Power 47kW
Max. Input Voltage 1100V
Rated Voltage 600V
Start-Up Voltage 180V
MPPT Voltage Range 200-1000V
Max. Input Current 4*26A
Max. Short Circuit Current 4*40A
MPPT Number 4
Max. Input Strings Number 8
Rated Output Power 36kW
Max. Apparent Output Power 39.6kVA
Max. Output Power 39.6kW
Rated Grid Voltage 3/N/PE, 220/380V, 230/400V
Rated Grid Frequency 50Hz/60Hz
Rated Grid Output Current 54.7A/52.0A
Max. Output Current 60.2A
THDi <3%
Power Factor >0.99 (0.8 leading - 0.8 lagging)
Max. Efficiency 98.8%
EU Efficiency 98.3%
DC Reverse-Polarity Protection Yes
Short Circuit Protection Yes
Output Over Current Protection Yes
Surge Protection DC Type II / AC Type II
Grid Monitoring Yes
Anti-Islanding Protection Yes
Temperature Protection Yes
Strings Monitoring Yes
I/V Curve Scanning Yes
Anti-Pid Function Optional
Integrated DC Switch Optional
Dimensions (W X H X D) 647 x 629 x 252 mm
Weight 45 kg
Topology Transformerless
Self Consumption <1W(Night)
Operating Ambient Temperature Range -25~60℃
Relative Humidity 0~100%
Ingress Protection IP65
Cooling Concept Natural convection
Max. Operation Altitude 4000 m
Grid Connection Standard VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, IEC61727, DEWA
Safety/EMC Standard IEC 62109-1/-2, IEC62116, EN 61000-6-1/-2/-3/-4
DC Connection MC4 connector
AC Connection OT terminal
Display LCD
Communication RS485, Optional: Wi-Fi, GPRS
