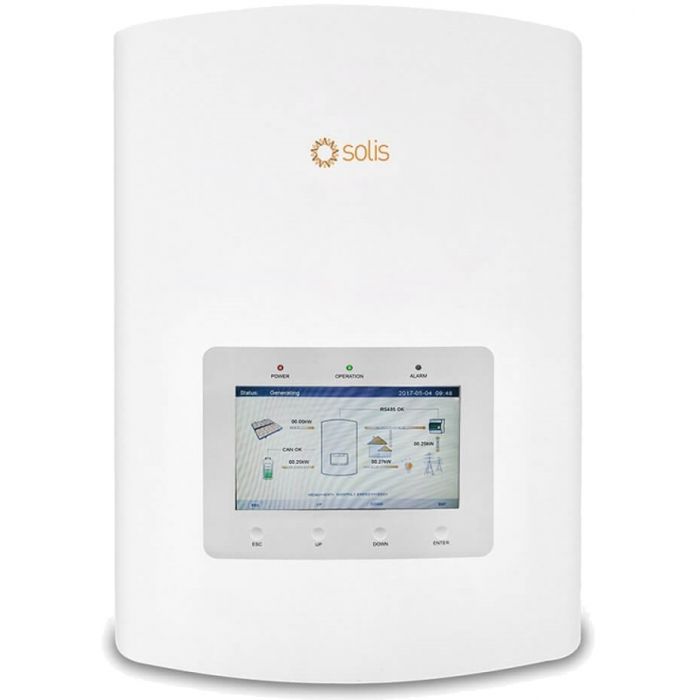

Solis 5G Energy Storage Hybrid Inverter - 6kW, Pack Of 3
R91,999.00
SKU
SOL6KRHI48ES5GDC3
Shipping restrictions apply.
Manufacturer's Website
Description
The Solis 5G Energy Storage Hybrid Inverter - 6kW, Pack Of 3 is a super high efficiency, high independence inverter that can be operated out of the power grid. The high incomes allow you to select the electricity consumption mode in real-time according to the market price.
Please Note: Contains 3 x inverters. DC switches included.
Features
- All new intelligent hybrid PV inverter
- Dual MPPT 6k
- Off-grid backup function
- Export control
- UPS function
- Intelligent EMS function
- Multiple protection functions
- CAN,RS485,Wi-Fi/LAN/GPRS(optional)
Specifications
| Max. Input Voltage | 600 |
| Start-Up Voltage | 120 V |
| Max. Input Current | 11 A / 11 A |
| MPPT Number/Max Input Strings Number | 2/2 |
| Battery Voltage Range | 42-58 V |
| Charging Power | 5 kW |
| Communication | CAN/RS485 |
| Max. Apparent Output Power | 6 kVA |
| Rated Grid Voltage | 1/N/PE, 220 V / 230 V |
| Rated Output Current | 22.7 A / 22 A |
| Max. Input Current | 26.1 A |
| Max. Apparent Output Power | 6 kVA |
| Rated Grid Voltage | 220 V / 230 V |
| Rated Grid Output Current | 27.2 A / 26.1 A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| EU Efficiency | >96.8% |
| Integrated AFCi (DC Arc-Fault Circuit Protection) | Yes |
| DC Reverse-Polarity Protection | Yes |
| Protection Class/Over Voltage Category | I/II |
| Dimensions | 333 x 505 x 249 mm |
| Weight | 17 kg |
| Topology | High-frequency isolation (for battery) |
| Ingress Protection | IP65 |
| Cooling Concept | Natural convection |
| Max. Operation Altitude | 2000 m |
| Safety/EMC Standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
| DC Connection | MC4 connector |
| AC Connection | Quick connection plug |
| Display | 7.0 inch LCD colour screen display |
| Communication | RS485, Optional: Wi-Fi, GPRS |
